Shop SMC

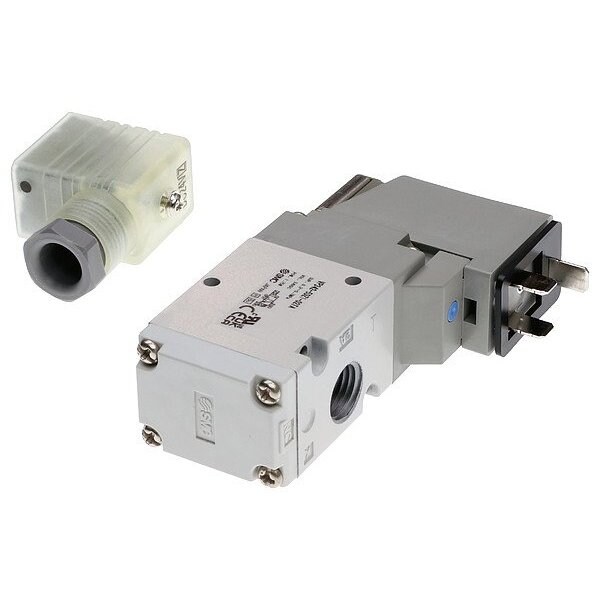

Solenoid Air Control Valve, 113 mm L

  • Mfr # VP342-5YO1-02FA

  • Zoro # G821915269

product price:  $73.79
/ea

Key Features

Number of Ways
Three-Way
Overall Height
83 mm
Operating Pressure - Minimum
0.2 MPa
Exhaust Port Connection Size
1/4
Valve Type
Spool
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
VP342-5YO1-02FA
Zoro #
G821915269
UPC #
-
Country of Origin
Japan

Dimensions

Overall Height
83 mm
Exhaust Port Connection Size
1/4
Inlet Port Connection Size
1/4
Overall Width
27 mm
Wire Rope Length
113 mm
Overall Length
113 mm

Details

Number of Ways
Three-Way
Operating Pressure - Minimum
0.2 MPa
Valve Type
Spool
Number of Ports
3
Valve Action
Normally Closed
Pilot Pressure
0.2 MPa
Product Type
Solenoid Air Control Valve
Exhaust Port Connection Type
BSPP
Exhaust Port Connection Gender
Female
Includes Solenoid Coil
Solenoid Coil Included
Inlet Port Connection Gender
Female
Operating Temperature - Minimum
-10 Degrees C
Series
VP300
Body Features
Single
Pilot Port Connection Gender
Female
Response Time
13 msec
Voltage
24V DC
Override
Non-Locking
Inlet Port Connection Type
BSPP
Operating Pressure - Maximum
0.7 MPa
Number of Positions
Two-Position
Power Consumption
0.55 W
Return Action
Spring Return
Item
Solenoid Air Control Valve
Coefficient of Volume (Cv)
1
Pilot Type
Internal Pilot
Operating Temperature - Maximum
50 Degrees C
Seal Material
Rubber
Body Material
Aluminum
Actuator Type
Single Solenoid
Body Style
Body-Ported
Electrical Connection Type
DIN Solenoid Connector

Description

Solenoid Air Control Valve, Voltage 24V DC, Center Position Not Applicable, Body Style Body-Ported, Pilot Pressure 0.2 MPa, Power Consumption 0.55 W, Override Non-Locking, Overall Height 83 mm, Overall Length 113 mm, Overall Width 27 mm
