Shop SMC

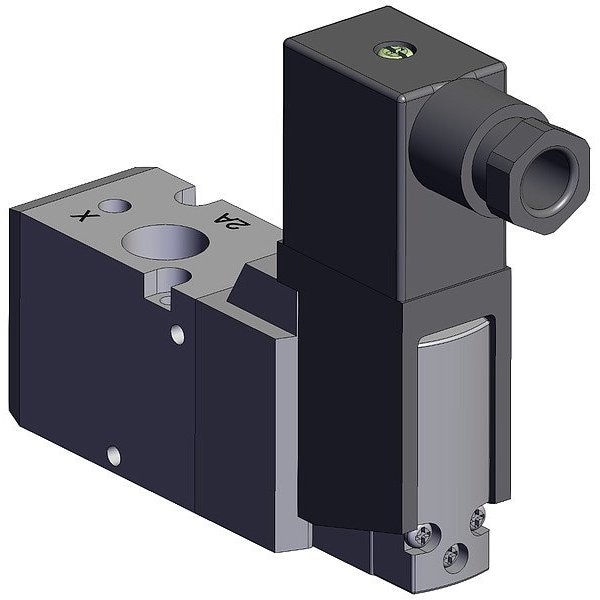

Solenoid Air Control Valve, 113 mm L

  • Mfr # VP342R-5DZ1-02A

  • Zoro # G821915207

product price:  $78.29
/ea

Key Features

Body Material
Aluminum
Exhaust Port Connection Size
1/4
Product Type
Solenoid Air Control Valve
Valve Action
Normally Closed
Exhaust Port Connection Gender
Female
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
VP342R-5DZ1-02A
Zoro #
G821915207
UPC #
-
Country of Origin
Japan

Dimensions

Exhaust Port Connection Size
1/4
Wire Rope Length
113 mm
Overall Width
27 mm
Inlet Port Connection Size
1/4
Overall Height
83 mm
Pilot Port Connection Size
1/4
Overall Length
113 mm

Details

Body Material
Aluminum
Product Type
Solenoid Air Control Valve
Valve Action
Normally Closed
Exhaust Port Connection Gender
Female
Valve Type
Spool
Coefficient of Volume (Cv)
1
Includes Solenoid Coil
Solenoid Coil Included
Return Action
Spring Return
Body Features
Single
Override
Non-Locking
Power Consumption
0.55 W
Number of Ports
3
Number of Positions
Two-Position
Seal Material
Rubber
Inlet Port Connection Gender
Female
Response Time
38 msec
Pilot Port Connection Gender
Female
Series
VP300
Inlet Port Connection Type
BSPT
Pilot Pressure
0.2 MPa
Operating Pressure - Minimum
0.2 MPa
Exhaust Port Connection Type
BSPT
Operating Pressure - Maximum
0.7 MPa
Actuator Type
Single Solenoid
Electrical Connection Type
DIN Solenoid Connector
Operating Temperature - Maximum
50 Degrees C
Item
Solenoid Air Control Valve
Voltage
24V DC
Number of Ways
Three-Way
Body Style
Body-Ported
Operating Temperature - Minimum
-10 Degrees C

Description

Solenoid Air Control Valve, Voltage 24V DC, Center Position Not Applicable, Body Style Body-Ported, Pilot Pressure 0.2 MPa, Power Consumption 0.55 W, Override Non-Locking, Overall Height 83 mm, Overall Length 113 mm, Overall Width 27 mm
