Shop SMC

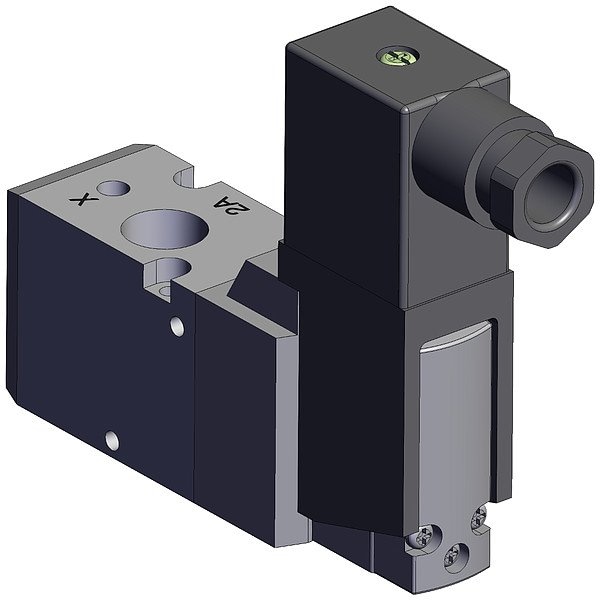

Solenoid Air Control Valve, 113 mm L

  • Mfr # VP342R-5DZ1-02NA

  • Zoro # G521915316

product price:  $78.29
/ea

Key Features

Return Action
Spring Return
Exhaust Port Connection Type
NPT
Overall Height
83 mm
Response Time
38 msec
Body Features
Single
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
VP342R-5DZ1-02NA
Zoro #
G521915316
UPC #
-
Country of Origin
Japan

Dimensions

Overall Height
83 mm
Overall Length
113 mm
Exhaust Port Connection Size
1/4
Pilot Port Connection Size
1/4
Overall Width
27 mm
Inlet Port Connection Size
1/4
Wire Rope Length
113 mm

Details

Return Action
Spring Return
Exhaust Port Connection Type
NPT
Response Time
38 msec
Body Features
Single
Body Material
Aluminum
Power Consumption
0.55 W
Actuator Type
Single Solenoid
Valve Action
Normally Closed
Inlet Port Connection Type
NPT
Includes Solenoid Coil
Solenoid Coil Included
Exhaust Port Connection Gender
Female
Pilot Port Connection Type
NPT
Series
VP300
Body Style
Body-Ported
Electrical Connection Type
DIN Solenoid Connector
Operating Pressure - Maximum
0.7 MPa
Override
Non-Locking
Seal Material
Rubber
Operating Temperature - Maximum
50 Degrees C
Coefficient of Volume (Cv)
1
Voltage
24V DC
Pilot Port Connection Gender
Female
Product Type
Solenoid Air Control Valve
Item
Solenoid Air Control Valve
Number of Ports
3
Valve Type
Spool
Inlet Port Connection Gender
Female
Number of Positions
Two-Position
Operating Pressure - Minimum
0.2 MPa
Operating Temperature - Minimum
-10 Degrees C
Number of Ways
Three-Way

Description

Solenoid Air Control Valve, Voltage 24V DC, Center Position Not Applicable, Body Style Body-Ported, Power Consumption 0.55 W, Override Non-Locking, Overall Height 83 mm, Overall Length 113 mm, Overall Width 27 mm
