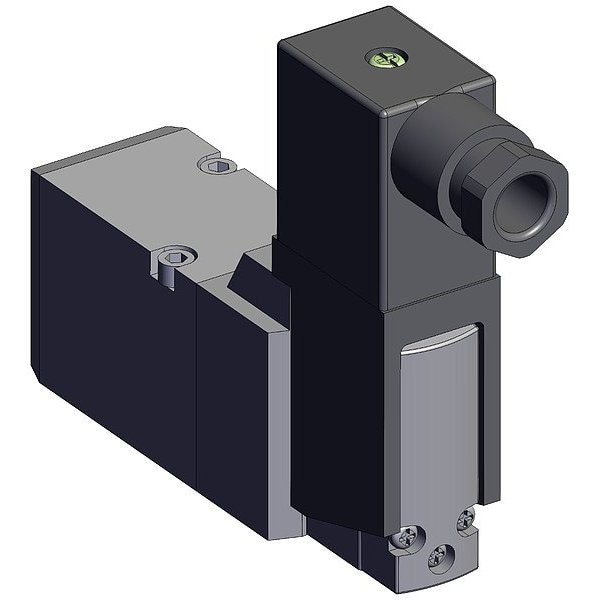

Solenoid Air Control Valve, 113 mm L

  • Mfr # VP344-5DZ1-A

  • Zoro # G721914607

product price:
$
82.39
/ea

Key Features

Actuator Type
Single Solenoid
Override
Non-Locking
Power Consumption
0.55 W
Body Material
Aluminum
Product Type
Solenoid Air Control Valve
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
VP344-5DZ1-A
Zoro #
G721914607
UPC #
-
Country of Origin
Japan

Dimensions

Overall Height
107 mm
Overall Width
43 mm
Wire Rope Length
113 mm
Overall Length
113 mm
Length
113 mm

Details

Actuator Type
Single Solenoid
Override
Non-Locking
Power Consumption
0.55 W
Body Material
Aluminum
Product Type
Solenoid Air Control Valve
Pilot Port Connection Gender
Female
Return Action
Spring Return
Operating Temperature - Maximum
50 Degrees C
Number of Ways
Three-Way
Exhaust Port Connection Type
BSPT
Number of Positions
Two-Position
Operating Pressure - Minimum
0.2 MPa
Electrical Connection Type
DIN Solenoid Connector
Inlet Port Connection Gender
Female
Valve Action
Normally Closed
Item
Solenoid Air Control Valve
Body Features
Single
Valve Type
Spool
Coefficient of Volume (Cv)
0.9
Includes Solenoid Coil
Solenoid Coil Included
Operating Temperature - Minimum
-10 Degrees C
Response Time
38 msec
Series
VP300
Inlet Port Connection Type
BSPT
Voltage
24V DC
Body Style
Base-Mounted
Pilot Pressure
0.2 MPa
Seal Material
Rubber
Pilot Type
Internal Pilot
Operating Pressure - Maximum
0.7 MPa
Exhaust Port Connection Gender
Female
Number of Ports
3

Description

Solenoid Air Control Valve, Voltage 24V DC, Center Position Not Applicable, Body Style Base-Mounted, Pilot Pressure 0.2 MPa, Power Consumption 0.55 W, Override Non-Locking, Overall Height 107 mm, Overall Length 113 mm, Overall Width 43 mm
