Shop SMC

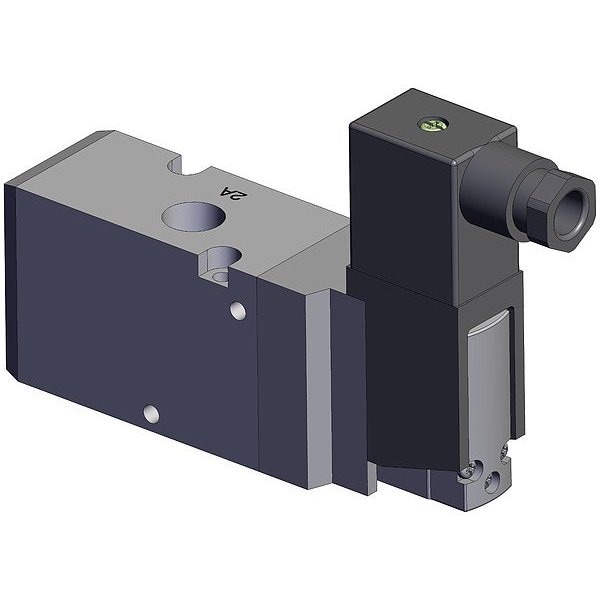

Solenoid Air Control Valve, 140 mm L

  • Mfr # VP542-5DZ1-02NA

  • Zoro # G221914848

product price:  $90.89
/ea

Key Features

Body Material
Aluminum
Pilot Type
Internal Pilot
Number of Ways
Three-Way
Electrical Connection Type
DIN Solenoid Connector
Inlet Port Connection Gender
Female
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
VP542-5DZ1-02NA
Zoro #
G221914848
UPC #
-
Country of Origin
Japan

Dimensions

Exhaust Port Connection Size
1/4
Wire Rope Length
140 mm
Overall Height
85 mm
Inlet Port Connection Size
1/4
Overall Width
32 mm
Overall Length
140 mm

Details

Body Material
Aluminum
Pilot Type
Internal Pilot
Number of Ways
Three-Way
Electrical Connection Type
DIN Solenoid Connector
Inlet Port Connection Gender
Female
Body Features
Single
Number of Ports
3
Operating Pressure - Maximum
0.7 MPa
Pilot Port Connection Gender
Female
Valve Type
Spool
Response Time
39 msec
Coefficient of Volume (Cv)
1.8
Number of Positions
Two-Position
Seal Material
Rubber
Product Type
Solenoid Air Control Valve
Voltage
24V DC
Operating Pressure - Minimum
0.2 MPa
Pilot Pressure
0.2 MPa
Operating Temperature - Minimum
-10 Degrees C
Exhaust Port Connection Gender
Female
Power Consumption
0.55 W
Valve Action
Normally Closed
Body Style
Body-Ported
Includes Solenoid Coil
Solenoid Coil Included
Override
Non-Locking
Operating Temperature - Maximum
50 Degrees C
Series
VP500
Exhaust Port Connection Type
NPT
Item
Solenoid Air Control Valve
Return Action
Spring Return
Actuator Type
Single Solenoid
Inlet Port Connection Type
NPT

Description

Solenoid Air Control Valve, Voltage 24V DC, Center Position Not Applicable, Body Style Body-Ported, Pilot Pressure 0.2 MPa, Power Consumption 0.55 W, Override Non-Locking, Overall Height 85 mm, Overall Length 140 mm, Overall Width 32 mm
