Shop SMC

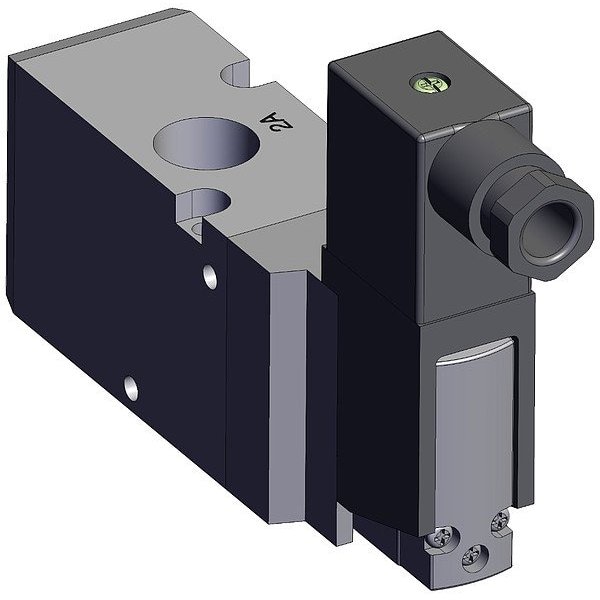

Solenoid Air Control Valve, 140 mm L

  • Mfr # VP542-5DZ1-03A

  • Zoro # G521914944

product price:
$
95.19
/ea

Key Features

Inlet Port Connection Size
3/8
Inlet Port Connection Gender
Female
Exhaust Port Connection Size
3/8
Product Type
Solenoid Air Control Valve
Voltage
24V DC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
VP542-5DZ1-03A
Zoro #
G521914944
UPC #
-
Country of Origin
Japan
Inlet Port Connection Gender
Female
Product Type
Solenoid Air Control Valve
Voltage
24V DC
Response Time
39 msec
Number of Positions
Two-Position
Number of Ways
Three-Way
Operating Temperature - Minimum
-10 Degrees C
Pilot Pressure
0.2 MPa
Pilot Type
Internal Pilot
Number of Ports
3
Body Features
Single
Exhaust Port Connection Type
BSPT
Operating Temperature - Maximum
50 Degrees C
Operating Pressure - Maximum
0.7 MPa
Operating Pressure - Minimum
0.2 MPa
Seal Material
Rubber
Body Material
Aluminum
Includes Solenoid Coil
Solenoid Coil Included
Body Style
Body-Ported
Inlet Port Connection Type
BSPT
Power Consumption
0.55 W
Valve Action
Normally Closed
Item
Solenoid Air Control Valve
Valve Type
Spool
Coefficient of Volume (Cv)
2.2
Exhaust Port Connection Gender
Female
Pilot Port Connection Gender
Female
Return Action
Spring Return
Actuator Type
Single Solenoid
Override
Non-Locking
Electrical Connection Type
DIN Solenoid Connector
Series
VP500

Description

Solenoid Air Control Valve, Voltage 24V DC, Center Position Not Applicable, Body Style Body-Ported, Pilot Pressure 0.2 MPa, Power Consumption 0.55 W, Override Non-Locking, Overall Height 85 mm, Overall Length 140 mm, Overall Width 32 mm
