Shop SMC

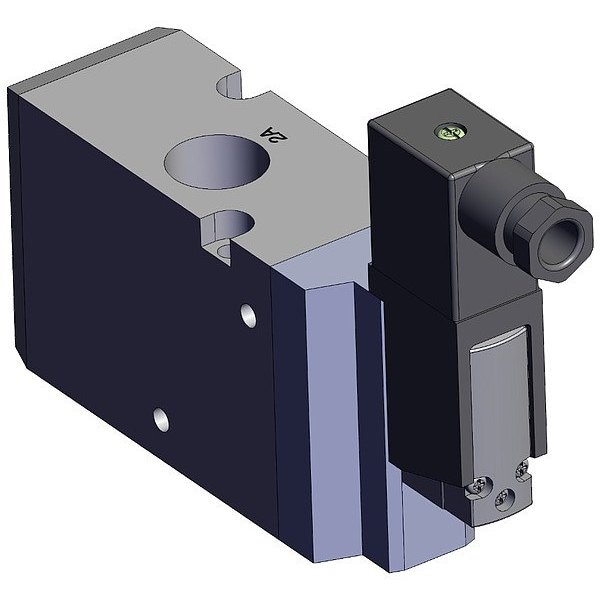

Solenoid Air Control Valve, 163 mm L

  • Mfr # VP742-3DZ1-04TA
  • Zoro # G021914611

product price:
$
131.99
/ea
Free Shipping & Returns

Key Features

Number of Positions
Two-Position
Operating Temperature - Minimum
-10 Degrees C
Includes Solenoid Coil
Solenoid Coil Included
Pilot Type
Internal Pilot
Overall Width
40 mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
VP742-3DZ1-04TA
Zoro #
G021914611
UPC #
-
Country of Origin
Japan
Number of Positions
Two-Position
Operating Temperature - Minimum
-10 Degrees C
Includes Solenoid Coil
Solenoid Coil Included
Pilot Type
Internal Pilot
Body Features
Single
Item
Solenoid Air Control Valve
Number of Ports
3
Electrical Connection Type
DIN Solenoid Connector
Series
VP700
Response Time
44 msec
Return Action
Spring Return
Operating Pressure - Maximum
0.7 MPa
Voltage
24V DC
Operating Pressure - Minimum
0.2 MPa
Operating Temperature - Maximum
50 Degrees C
Pilot Port Connection Gender
Female
Exhaust Port Connection Gender
Female
Inlet Port Connection Gender
Female
Pilot Pressure
0.2 MPa
Inlet Port Connection Type
NPTF
Power Consumption
0.55 W
Actuator Type
Single Solenoid
Product Type
Solenoid Air Control Valve
Override
Non-Locking
Body Material
Aluminum
Valve Action
Normally Closed
Number of Ways
Three-Way
Seal Material
Rubber
Coefficient of Volume (Cv)
3.6
Body Style
Body-Ported
Valve Type
Spool

Dimensions

Overall Width
40 mm
Inlet Port Connection Size
1/2
Exhaust Port Connection Size
1/2
Wire Rope Length
163 mm
Overall Height
103 mm
Overall Length
163 mm
Length
163 mm

Description

Solenoid Air Control Valve, Voltage 24V DC, Center Position Not Applicable, Body Style Body-Ported, Pilot Pressure 0.2 MPa, Power Consumption 0.55 W, Override Non-Locking, Overall Height 103 mm, Overall Length 163 mm, Overall Width 40 mm
