Shop SMC

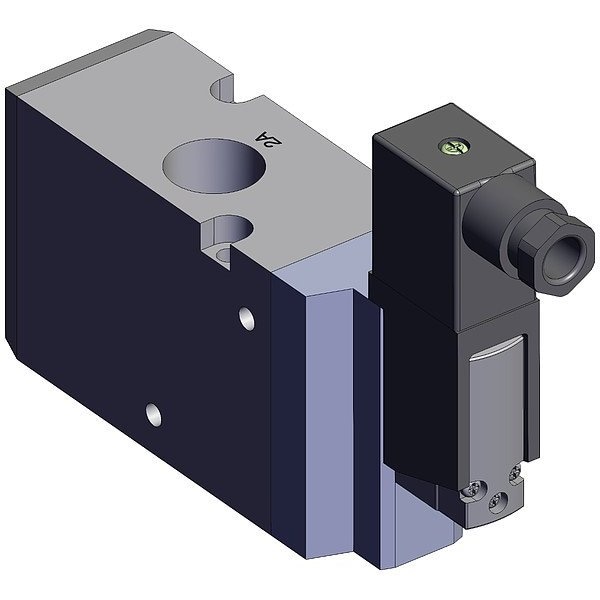

Solenoid Air Control Valve, 163 mm L

  • Mfr # VP742-5DZ1-04A

  • Zoro # G921914858

product price:  $131.99
/ea
Free Shipping & Returns

Key Features

Inlet Port Connection Type
BSPT
Pilot Port Connection Gender
Female
Inlet Port Connection Gender
Female
Seal Material
Rubber
Body Material
Aluminum
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
VP742-5DZ1-04A
Zoro #
G921914858
UPC #
-
Country of Origin
Japan

Dimensions

Overall Height
103 mm
Exhaust Port Connection Size
1/2
Inlet Port Connection Size
1/2
Overall Width
40 mm
Wire Rope Length
163 mm
Overall Length
163 mm

Details

Inlet Port Connection Type
BSPT
Pilot Port Connection Gender
Female
Inlet Port Connection Gender
Female
Seal Material
Rubber
Body Material
Aluminum
Product Type
Solenoid Air Control Valve
Operating Pressure - Minimum
0.2 MPa
Pilot Pressure
0.2 MPa
Body Features
Single
Operating Temperature - Minimum
-10 Degrees C
Pilot Type
Internal Pilot
Item
Solenoid Air Control Valve
Return Action
Spring Return
Voltage
24V DC
Valve Type
Spool
Series
VP700
Includes Solenoid Coil
Solenoid Coil Included
Number of Ports
3
Exhaust Port Connection Gender
Female
Number of Positions
Two-Position
Coefficient of Volume (Cv)
3.6
Power Consumption
0.55 W
Override
Non-Locking
Exhaust Port Connection Type
BSPT
Electrical Connection Type
DIN Solenoid Connector
Body Style
Body-Ported
Number of Ways
Three-Way
Valve Action
Normally Closed
Response Time
44 msec
Actuator Type
Single Solenoid
Operating Temperature - Maximum
50 Degrees C
Operating Pressure - Maximum
0.7 MPa

Description

Solenoid Air Control Valve, Voltage 24V DC, Center Position Not Applicable, Body Style Body-Ported, Pilot Pressure 0.2 MPa, Power Consumption 0.55 W, Override Non-Locking, Overall Height 103 mm, Overall Length 163 mm, Overall Width 40 mm
