Shop SMC

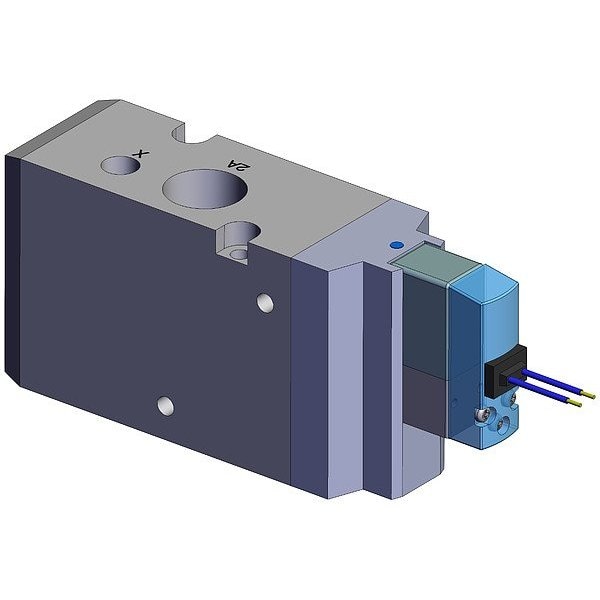

Solenoid Air Control Valve, 163 mm L

  • Mfr # VP742R-5YO1-04FA

  • Zoro # G221916262

product price:  $128.99
/ea
Free Shipping & Returns

Key Features

Includes Solenoid Coil
Solenoid Coil Included
Seal Material
Rubber
Number of Ports
3
Exhaust Port Connection Gender
Female
Operating Pressure - Maximum
0.7 MPa
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
VP742R-5YO1-04FA
Zoro #
G221916262
UPC #
-
Country of Origin
Japan

Dimensions

Inlet Port Connection Size
1/2
Exhaust Port Connection Size
1/2
Pilot Port Connection Size
1/2
Wire Rope Length
163 mm
Overall Width
40 mm
Overall Height
103 mm
Overall Length
163 mm

Details

Includes Solenoid Coil
Solenoid Coil Included
Seal Material
Rubber
Number of Ports
3
Exhaust Port Connection Gender
Female
Operating Pressure - Maximum
0.7 MPa
Voltage
24V DC
Inlet Port Connection Gender
Female
Inlet Port Connection Type
BSPP
Pilot Pressure
0.2 MPa
Valve Action
Normally Closed
Exhaust Port Connection Type
BSPP
Body Features
Single
Power Consumption
0.55 W
Return Action
Spring Return
Operating Pressure - Minimum
0.2 MPa
Body Style
Body-Ported
Product Type
Solenoid Air Control Valve
Item
Solenoid Air Control Valve
Coefficient of Volume (Cv)
3.6
Number of Ways
Three-Way
Electrical Connection Type
DIN Solenoid Connector
Number of Positions
Two-Position
Series
VP700
Override
Non-Locking
Response Time
19 msec
Valve Type
Spool
Body Material
Aluminum
Operating Temperature - Maximum
50 Degrees C
Pilot Port Connection Gender
Female
Actuator Type
Single Solenoid
Operating Temperature - Minimum
-10 Degrees C

Description

Solenoid Air Control Valve, Voltage 24V DC, Center Position Not Applicable, Body Style Body-Ported, Pilot Pressure 0.2 MPa, Power Consumption 0.55 W, Override Non-Locking, Overall Height 103 mm, Overall Length 163 mm, Overall Width 40 mm
