Shop SMC

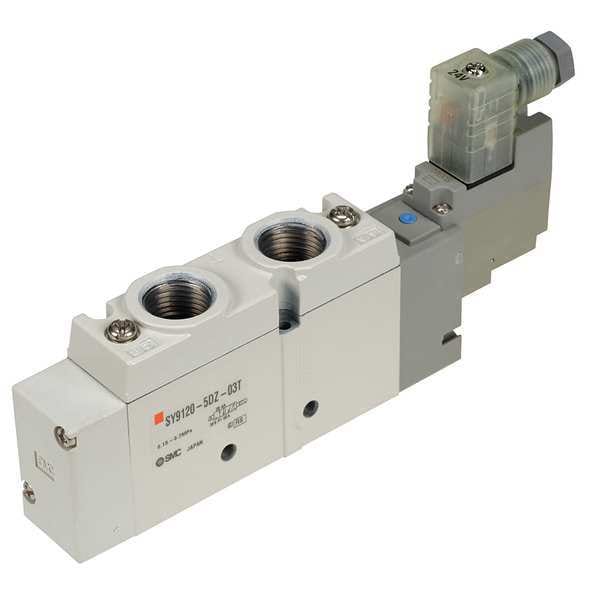

Solenoid Air Control Valve, 1/8 In, 24VDC

  • Mfr # SY9220-5DZ-03T

  • Zoro # G5402485

product price:  $119.99
/ea
Free Shipping & Returns

Key Features

Body Style
Base-Mounted
Series
SY9000
Voltage
24V DC
Valve Actuator / Return
Solenoid / Solenoid
Pilot Pressure
15 psi
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SY9220-5DZ-03T
Zoro #
G5402485
UPC #
-
Country of Origin
Japan

Dimensions

Overall Height
7 3/8 in
Overall Width
3 in
Pilot Port Size
3/8 in NPTF
Pipe Size
3/8 in
Overall Length
1 5/8 in
Pilot Port Connection Size
3/8 in
Inlet Port Connection Size
3/8 in
Exhaust Port Connection Size
3/8 in

Details

Item
Solenoid Air Control Valve
Body Style
Base-Mounted
Series
SY9000
Voltage
24V DC
Valve Actuator / Return
Solenoid / Solenoid
Pilot Pressure
15 psi
Power Consumption
0.45 W
Coefficient of Volume
2
Body Material
Aluminum
Override
Non-Locking
Actuator/Return
Solenoid/Solenoid
Electrical Connections
DIN Terminal With Connector
Valve Ways and Positions
5-Way/2-Position
Pressure Range
15 to 100 psi
Standards
RoHS Compliant
CFM
2.5
Air Valve Type
5-Way, 2-Position
Ambient Temp. Range
14 Degrees to 122 Degrees F
Shifting Technology
Solenoid
Operational Pressure Range
15 to 100 psi
Max. CFM - Valves
2.5 cfm
Number of Positions
Two-Position
Number of Ways
Five-Way
Pilot Port Connection Type
NPT
Operating Temperature - Maximum
122 Degrees F
Inlet Port Connection Type
NPT
Lubrication
Lubrication Not Required
Product Type
Solenoid Air Control Valve
Operating Pressure - Minimum
15 psi
Flow Rate - Maximum
2.5 cfm
Pilot Type
Internal Pilot
Coefficient of Volume (Cv)
2.5
Actuator Type
Double Solenoid
Seal Material
Rubber
Operating Temperature - Minimum
14 Degrees F
Inlet Port Connection Gender
Female
Exhaust Port Connection Gender
Female
For Media
Air
Electrical Connection Type
Terminal Block
Spool Material
Aluminum
Exhaust Port Connection Type
NPT
Body Features
Single
Pilot Port Connection Gender
Female
Includes Mounting Hardware
Hardware Included
Number of Ports
5
Return Action
Solenoid Return
Includes Solenoid Coil
Solenoid Coil Included
Valve Type
Spool
Vacuum Rating
Not Vacuum Operable
Response Time
35 msec
Operating Pressure - Maximum
101 psi

Description

Solenoid Air Control Valve, Valve Ways and Positions 5-Way/2-Position, Voltage 24V DC, Center Position Not Applicable, Valve Actuator / Return Solenoid / Solenoid, ISO Class Not Applicable, Pipe Size 3/8 in, Max. CFM - Valves 2.5 cfm, Operational Pressure Range 15 to 100 psi, Body Style Base-Mounted, Pilot Port Size 3/8 in NPTF, Pilot Pressure 15 psi, Coefficient of Volume 2, DIN Terminal With Connector Electrical Connections, Shifting Technology Solenoid, Power Consumption 0.45 W
