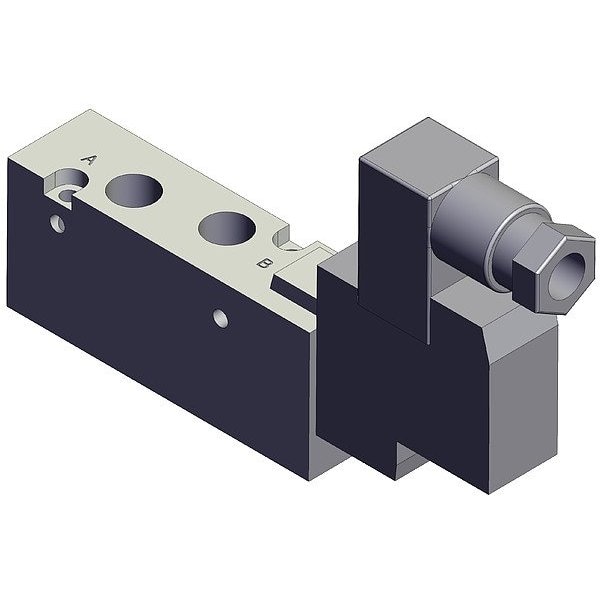

Solenoid Air Control Valve, 180 mm L

  • Mfr # SYJ7320-5YO-01F-Q
  • Zoro # G521915965
product price:
$
165.99
/ea
Free Shipping & Returns

Key Features

Coefficient of Volume (Cv)
0.57
Overall Height
65 mm
Inlet Port Connection Gender
Female
Return Action
Spring Return
Pilot Type
Internal Pilot
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
SYJ7320-5YO-01F-Q
Zoro #
G521915965
UPC #
-
Country of Origin
Japan
Coefficient of Volume (Cv)
0.57
Inlet Port Connection Gender
Female
Return Action
Spring Return
Pilot Type
Internal Pilot
Product Type
Solenoid Air Control Valve
Operating Pressure - Minimum
0.1 MPa
Operating Temperature - Minimum
-10 Degrees C
Body Material
Aluminum
Exhaust Port Connection Gender
Female
Pilot Pressure
0.15 MPa
Seal Material
Rubber
Includes Solenoid Coil
Solenoid Coil Included
Valve Action
Normally Closed
Voltage
24V DC
Number of Ways
Five-Way
Response Time
60 msec
Actuator Type
Single Solenoid
Number of Ports
5
Valve Type
Spool
Series
SYJ7000
Operating Temperature - Maximum
50 Degrees C
Number of Positions
Two-Position
Operating Pressure - Maximum
0.7 MPa
Item
Solenoid Air Control Valve
Body Style
Body-Ported
Pilot Port Connection Gender
Female
Power Consumption
0.5 W
Override
Non-Locking
Electrical Connection Type
DIN Solenoid Connector
Body Features
Single

Dimensions

Overall Height
65 mm
Wire Rope Length
180 mm
Overall Width
18 mm
Overall Length
180 mm
Length
180 mm

Description

Solenoid Air Control Valve, Voltage 24V DC, Center Position Not Applicable, Body Style Body-Ported, Pilot Pressure 0.15 MPa, Power Consumption 0.5 W, Override Non-Locking, Overall Height 65 mm, Overall Length 180 mm, Overall Width 18 mm
