Shop SMC

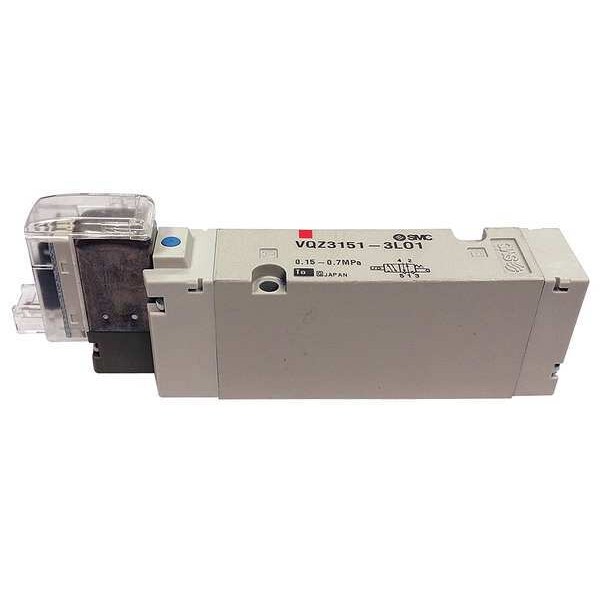

Solenoid Air Control Valve, 22.12CFM, 0.79

  • Mfr # VQZ3151-3LO1
  • Zoro # G9602101
product price:
$
62.19
/ea

Key Features

Body Style
Inline
Series
VQZ3000
Voltage
110V AC
Valve Actuator / Return
Solenoid / Spring
Pilot Pressure
15 psi
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
VQZ3151-3LO1
Zoro #
G9602101
UPC #
-
Country of Origin
Japan
Item
Solenoid Air Control Valve
Body Style
Inline
Series
VQZ3000
Voltage
110V AC
Valve Actuator / Return
Solenoid / Spring
Pilot Pressure
15 psi
Power Consumption
0.35 W
Coefficient of Volume
0.79
Body Material
Aluminum
Override
Non-Locking
Actuator/Return
Solenoid/Spring
Electrical Connections
Lead Wire
Valve Ways and Positions
5-Way/2-Position
CFM
22.12
Shifting Technology
Solenoid/Spring
Pressure Range
15 to 105 psi
Air Valve Type
5-Way, 2-Position
Max. CFM - Valves
22.1 cfm
Operational Pressure Range
15 to 105 psi
Ambient Temp. Range
14 Degrees to 122 Degrees F
Normally Open / Normally Closed
Normally Open/Normally Closed
Standards
RoHS Compliant
Number of Positions
Three-Position
Number of Ways
Five-Way
Return Action
Spring Return
Operating Pressure - Minimum
15 psi
Pilot Type
Internal Pilot
Response Time
33 msec
Lubrication
Lubrication Not Required
Electrical Connection Type
Plug-In
Operating Temperature - Minimum
14 Degrees F
Operating Temperature - Maximum
122 Degrees F
Coefficient of Volume (Cv)
1.2
Includes Solenoid Coil
Solenoid Coil Included
Operating Pressure - Maximum
101 psi
Product Type
Solenoid Air Control Valve
For Media
Air, Inert Gas
Number of Ports
5
Valve Action
Normally Open/Normally Closed
Flow Rate - Maximum
22.1 cfm
Spool Material
Aluminum
Vacuum Rating
Not Vacuum Operable
Seal Material
Rubber
Valve Type
Spool

Description

Solenoid Air Control Valve, Valve Ways and Positions 5-Way/2-Position, Voltage 110V AC, Center Position Not Applicable, Valve Actuator / Return Solenoid / Spring, ISO Class Not Applicable, Max. CFM - Valves 22.1 cfm, Operational Pressure Range 15 to 105 psi, Normally Open/Normally Closed, Body Style Inline, Pilot Pressure 15 psi, Coefficient of Volume 0.79, Lead Wire Electrical Connections, Shifting Technology Solenoid/Spring, Power Consumption 0.35 W
