Shop SMC

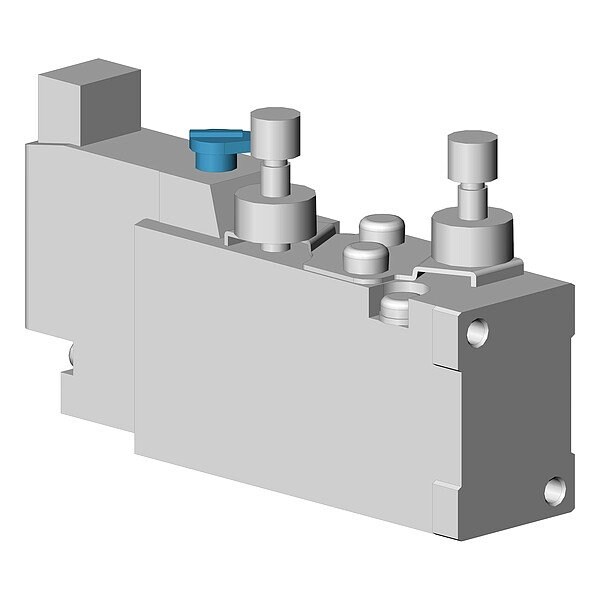

Solenoid Air Control Valve, 24V DC

  • Mfr # SYJ5153-5MOUE

  • Zoro # G121914542

product price:
$
88.15
/ea

Key Features

Operating Pressure - Maximum
0.7 MPa
Includes Solenoid Coil
Solenoid Coil Included
Body Features
Single
Electrical Connection Type
Plug-In
Voltage
24V DC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SYJ5153-5MOUE
Zoro #
G121914542
UPC #
-
Country of Origin
Japan

Dimensions

Overall Height
39 3/16 mm
Wire Rope Length
103 13/32 mm
Overall Width
15 mm
Overall Length
103 13/32 mm
Length
103 13/32 mm

Details

Operating Pressure - Maximum
0.7 MPa
Includes Solenoid Coil
Solenoid Coil Included
Body Features
Single
Electrical Connection Type
Plug-In
Item
Solenoid Air Control Valve
Voltage
24V DC
Operating Temperature - Minimum
-10 Degrees C
Actuator Type
Single Solenoid
Body Material
Aluminum
Body Style
Base-Mounted
Power Consumption
0.5 W
Seal Material
Rubber
Number of Ways
Five-Way
Exhaust Port Connection Gender
Female
Operating Pressure - Minimum
0.1 MPa
Product Type
Solenoid Air Control Valve
Pilot Type
Internal Pilot
Inlet Port Connection Gender
Female
Number of Ports
5
Number of Positions
Two-Position
Standards
ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
Lubrication
Lubrication Not Required
Operating Temperature - Maximum
50 Degrees C
Pilot Port Connection Gender
Female
Valve Action
Normally Closed
Valve Type
Spool
For Media
Air
Pilot Pressure
0.15 MPa
Override
Non-Locking
Return Action
Spring Return
Response Time
25 msec
Series
SYJ5000
Coefficient of Volume (Cv)
0.21

Description

Solenoid Air Control Valve, Voltage 24V DC, Center Position Not Applicable, Body Style Base-Mounted, Pilot Pressure 0.15 MPa, Power Consumption 0.5 W, Override Non-Locking, Overall Height 39 3/16 mm, Overall Length 103 13/32 mm, Overall Width 15 mm, Standards ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
