Shop SMC

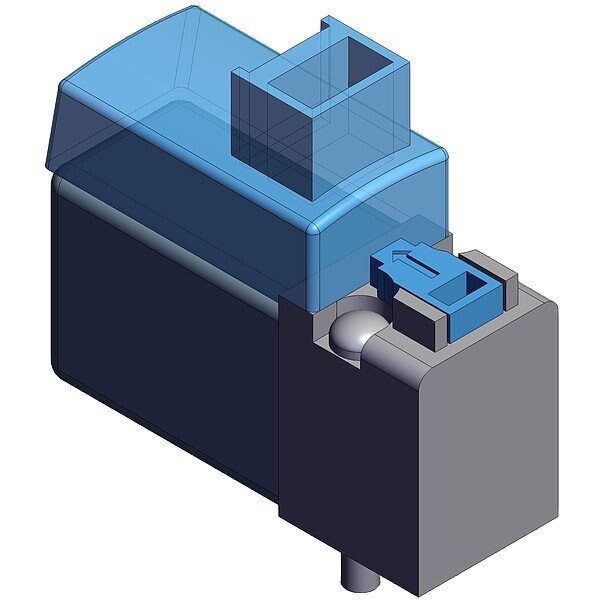

Solenoid Air Control Valve, 27 mm L

  • Mfr # V124-5LOU

  • Zoro # G921915442

product price:  $31.79
/ea

Key Features

Includes Solenoid Coil
Solenoid Coil Included
Number of Positions
Two-Position
Actuator Type
Single Solenoid
Number of Ports
3
Power Consumption
0.35 W
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
V124-5LOU
Zoro #
G921915442
UPC #
-
Country of Origin
Japan

Dimensions

Overall Height
29 5/16 mm
Wire Rope Length
27 mm
Overall Width
10 mm

Details

Includes Solenoid Coil
Solenoid Coil Included
Number of Positions
Two-Position
Actuator Type
Single Solenoid
Number of Ports
3
Power Consumption
0.35 W
Coefficient of Volume (Cv)
0.13
Inlet Port Connection Gender
Female
Number of Ways
Three-Way
Body Features
Single
Body Material
Aluminum
Body Style
Base-Mounted
Voltage
24V DC
Valve Action
Normally Open
Product Type
Solenoid Air Control Valve
Return Action
Spring Return
Exhaust Port Connection Gender
Female
Operating Pressure - Minimum
0 MPa
Valve Type
Spool
Pilot Type
Internal Pilot
Operating Pressure - Maximum
0.7 MPa
Response Time
5 msec
Seal Material
Rubber
Series
VP100
Operating Temperature - Maximum
50 Degrees C
Operating Temperature - Minimum
-10 Degrees C
Pilot Port Connection Gender
Female
Pilot Pressure
0 MPa
Override
Non-Locking
Item
Solenoid Air Control Valve

Description

Solenoid Air Control Valve, Voltage 24V DC, Center Position Not Applicable, Body Style Base-Mounted, Pilot Pressure 0 MPa, Power Consumption 0.35 W, Override Non-Locking, Overall Height 29 5/16 mm, Overall Length 27 mm, Overall Width 10 mm
