Shop SMC

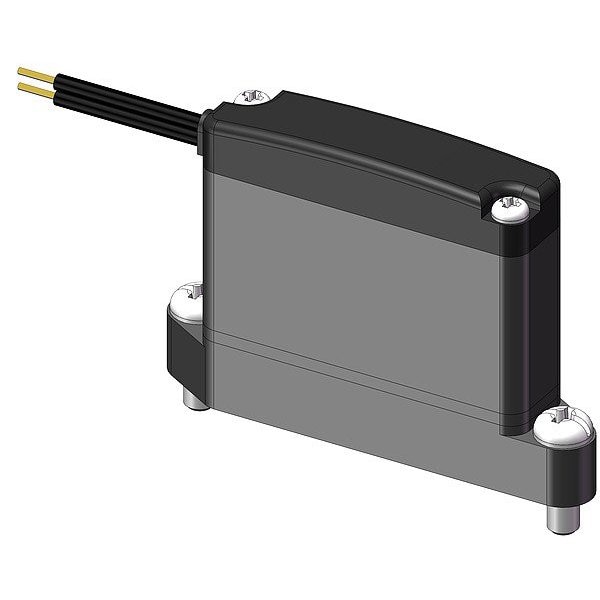

Solenoid Air Control Valve, 46 mm L

  • Mfr # SX11-HG
  • Zoro # G021914772
product price:
$
41.69
/ea

Key Features

Operating Pressure - Maximum
0.4 MPa
Valve Type
Poppet
Wire Rope Length
46 mm
Coefficient of Volume (Cv)
0.12
Power Consumption
4 W
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SX11-HG
Zoro #
G021914772
UPC #
-
Country of Origin
Japan

Dimensions

Wire Rope Length
46 mm
Overall Width
9 mm
Overall Height
30 13/32 mm
Overall Length
46 mm
Length
46 mm

Details

Operating Pressure - Maximum
0.4 MPa
Valve Type
Poppet
Item
Solenoid Air Control Valve
Coefficient of Volume (Cv)
0.12
Power Consumption
4 W
Series
SX10
Actuator Type
Single Solenoid
Return Action
Pilot Return
Override
Locking
Body Features
Single
Pilot Pressure
0.15 MPa
Response Time
1.7 msec
Operating Temperature - Minimum
-10 Degrees C
Pilot Type
Internal Pilot
Valve Action
Normally Closed
Includes Solenoid Coil
Solenoid Coil Included
Operating Temperature - Maximum
50 Degrees C
Voltage
24V DC
Body Material
Resin
Operating Pressure - Minimum
0.15 MPa
Number of Ports
2
Body Style
Base-Mounted
Number of Positions
Two-Position
Number of Ways
Two-Way

Description

Solenoid Air Control Valve, Voltage 24V DC, Center Position Not Applicable, Body Style Base-Mounted, Pilot Pressure 0.15 MPa, Power Consumption 4 W, Override Locking, Overall Height 30 13/32 mm, Overall Length 46 mm, Overall Width 9 mm
