Shop SMC

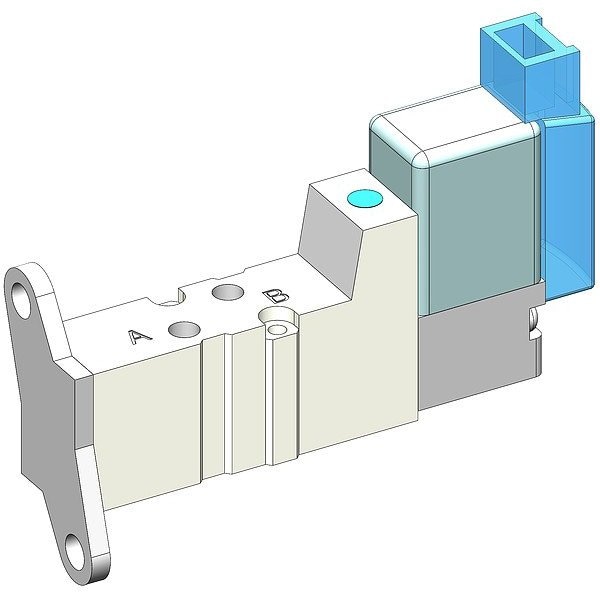

Solenoid Air Control Valve, 64 5/16 mm L

  • Mfr # SYJ3120-SMO-M3-F

  • Zoro # G721915239

product price:  $50.99
/ea

Key Features

Valve Action
Normally Closed
Body Style
Body-Ported
Inlet Port Connection Size
M3
Exhaust Port Connection Gender
Female
Series
SYJ3000
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SYJ3120-SMO-M3-F
Zoro #
G721915239
UPC #
-
Country of Origin
Japan

Dimensions

Inlet Port Connection Size
M3
Exhaust Port Connection Size
M3
Wire Rope Length
64 5/16 mm
Pilot Port Connection Size
M3
Overall Height
39 3/32 mm
Overall Width
11 mm
Overall Length
64 5/16 mm

Details

Valve Action
Normally Closed
Body Style
Body-Ported
Exhaust Port Connection Gender
Female
Series
SYJ3000
Actuator Type
Single Solenoid
Operating Pressure - Minimum
0.15 MPa
Pilot Port Connection Gender
Female
Body Features
Single
Power Consumption
0.5 W
Operating Pressure - Maximum
0.7 MPa
Number of Positions
Two-Position
Electrical Connection Type
Plug-In
Number of Ways
Five-Way
Operating Temperature - Maximum
50 Degrees C
Item
Solenoid Air Control Valve
Standards
ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
Includes Solenoid Coil
Solenoid Coil Included
Voltage
5V DC
Valve Type
Spool
Pilot Type
Internal Pilot
Body Material
Die Cast Zinc
Lubrication
Lubrication Not Required
Response Time
15 msec
Return Action
Spring Return
Operating Temperature - Minimum
-10 Degrees C
Override
Non-Locking
Inlet Port Connection Gender
Female
For Media
Air
Coefficient of Volume (Cv)
0.12
Product Type
Solenoid Air Control Valve
Pilot Pressure
0.15 MPa
Number of Ports
5
Seal Material
Rubber

Description

Solenoid Air Control Valve, Voltage 5V DC, Center Position Not Applicable, Body Style Body-Ported, Pilot Pressure 0.15 MPa, Power Consumption 0.5 W, Override Non-Locking, Overall Height 39 3/32 mm, Overall Length 64 5/16 mm, Overall Width 11 mm, Standards ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
