Shop SMC

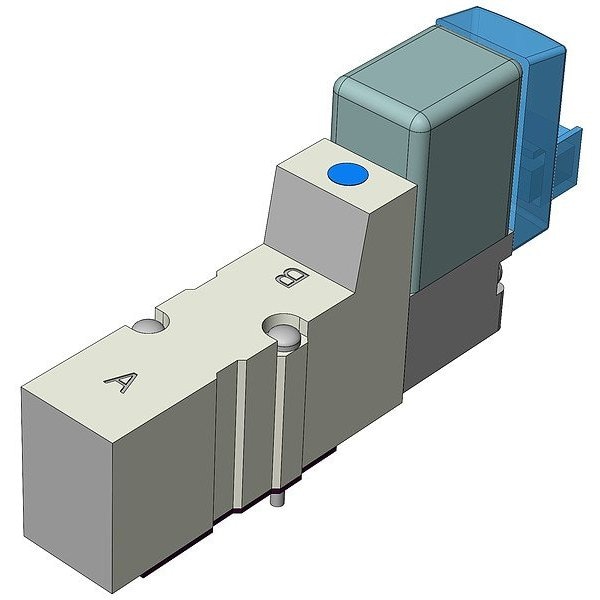

Solenoid Air Control Valve, 64 5/16 mm L

  • Mfr # SYJ3130-5LOZ

  • Zoro # G821915245

product price:  $49.19
/ea

Key Features

Valve Action
Normally Closed
Exhaust Port Connection Gender
Female
Number of Ports
4
Overall Height
39 3/32 mm
Power Consumption
0.5 W
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SYJ3130-5LOZ
Zoro #
G821915245
UPC #
-
Country of Origin
Japan

Dimensions

Overall Height
39 3/32 mm
Overall Width
11 mm
Wire Rope Length
64 5/16 mm
Overall Length
64 5/16 mm

Details

Valve Action
Normally Closed
Exhaust Port Connection Gender
Female
Number of Ports
4
Item
Solenoid Air Control Valve
Power Consumption
0.5 W
Series
SYJ3000
Seal Material
Rubber
Number of Ways
Five-Way
Body Style
Base-Mounted
Pilot Port Connection Gender
Female
Standards
ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
Electrical Connection Type
Plug-In
Override
Non-Locking
Operating Pressure - Minimum
0.15 MPa
Operating Temperature - Minimum
-10 Degrees C
Response Time
15 msec
For Media
Air
Body Material
Die Cast Zinc
Includes Solenoid Coil
Solenoid Coil Included
Actuator Type
Single Solenoid
Lubrication
Lubrication Not Required
Pilot Pressure
0.15 MPa
Number of Positions
Two-Position
Pilot Type
Internal Pilot
Body Features
Single
Return Action
Spring Return
Product Type
Solenoid Air Control Valve
Operating Temperature - Maximum
50 Degrees C
Voltage
24V DC
Valve Type
Spool
Coefficient of Volume (Cv)
0.12
Operating Pressure - Maximum
0.7 MPa
Inlet Port Connection Gender
Female

Description

Solenoid Air Control Valve, Voltage 24V DC, Center Position Not Applicable, Body Style Base-Mounted, Pilot Pressure 0.15 MPa, Power Consumption 0.5 W, Override Non-Locking, Overall Height 39 3/32 mm, Overall Length 64 5/16 mm, Overall Width 11 mm, Standards ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
