Shop SMC

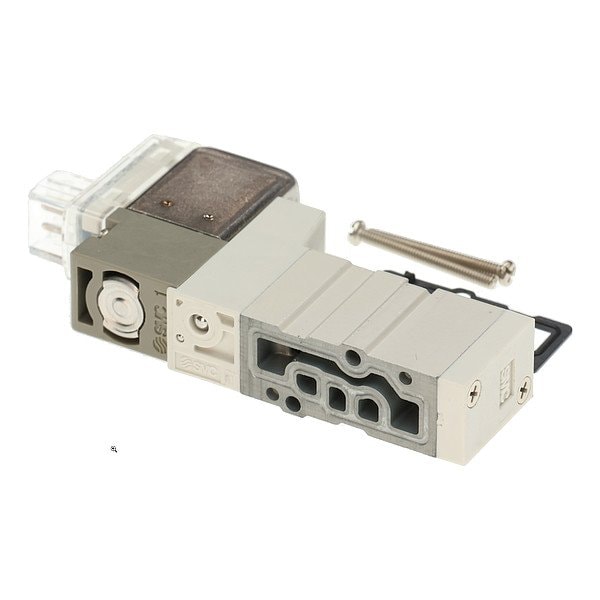

Solenoid Air Control Valve, 64 5/16 mm L

  • Mfr # SYJ3133-5LOU

  • Zoro # G521916214

product price:
$
51.89
/ea

Key Features

Number of Positions
Two-Position
Standards
ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
Overall Height
39 3/32 mm
Exhaust Port Connection Gender
Female
Body Material
Die Cast Zinc
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SYJ3133-5LOU
Zoro #
G521916214
UPC #
-
Country of Origin
Japan

Dimensions

Overall Height
39 3/32 mm
Overall Width
11 mm
Wire Rope Length
64 5/16 mm
Overall Length
64 5/16 mm
Length
64 5/16 mm

Details

Number of Positions
Two-Position
Standards
ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
Exhaust Port Connection Gender
Female
Body Material
Die Cast Zinc
Item
Solenoid Air Control Valve
Product Type
Solenoid Air Control Valve
Voltage
24V DC
Inlet Port Connection Gender
Female
Coefficient of Volume (Cv)
0.12
Operating Pressure - Minimum
0.15 MPa
Pilot Pressure
0.15 MPa
Valve Action
Normally Closed
Response Time
15 msec
Return Action
Spring Return
Body Style
Base-Mounted
Electrical Connection Type
Plug-In
Pilot Type
Internal Pilot
Power Consumption
0.5 W
Operating Pressure - Maximum
0.7 MPa
Lubrication
Lubrication Not Required
Number of Ways
Five-Way
Operating Temperature - Minimum
-10 Degrees C
Number of Ports
4
Valve Type
Spool
Actuator Type
Single Solenoid
Pilot Port Connection Gender
Female
For Media
Air
Body Features
Single
Includes Solenoid Coil
Solenoid Coil Included
Override
Non-Locking
Seal Material
Rubber
Series
SYJ3000
Operating Temperature - Maximum
50 Degrees C

Description

Solenoid Air Control Valve, Voltage 24V DC, Center Position Not Applicable, Body Style Base-Mounted, Pilot Pressure 0.15 MPa, Power Consumption 0.5 W, Override Non-Locking, Overall Height 39 3/32 mm, Overall Length 64 5/16 mm, Overall Width 11 mm, Standards ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
