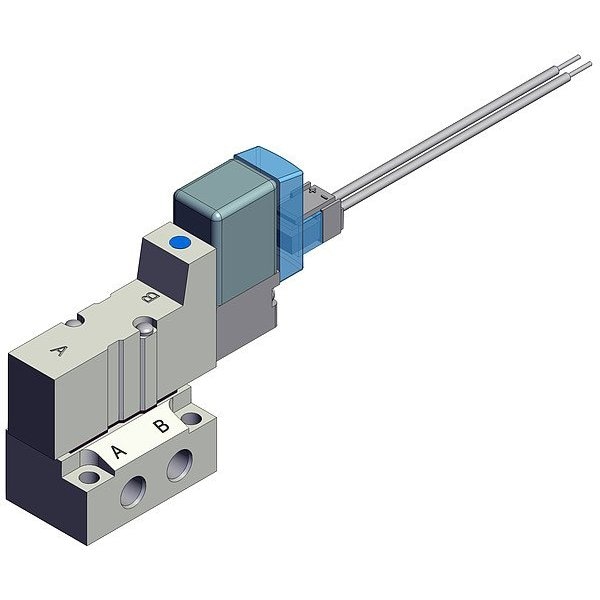

Solenoid Air Control Valve, 64 5/16 mm L

  • Mfr # SYJ3140-5LZ-M5

  • Zoro # G921914834

product price:  $65.15
/ea

Key Features

Body Style
Base-Mounted
Inlet Port Connection Gender
Female
Operating Pressure - Maximum
0.7 MPa
Override
Non-Locking
Pilot Pressure
0.15 MPa
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SYJ3140-5LZ-M5
Zoro #
G921914834
UPC #
-
Country of Origin
Japan

Dimensions

Inlet Port Connection Size
M5
Overall Width
11 mm
Pilot Port Connection Size
M5
Overall Height
39 3/32 mm
Exhaust Port Connection Size
M5
Wire Rope Length
64 5/16 mm
Overall Length
64 5/16 mm

Details

Body Style
Base-Mounted
Inlet Port Connection Gender
Female
Operating Pressure - Maximum
0.7 MPa
Override
Non-Locking
Pilot Pressure
0.15 MPa
Lubrication
Lubrication Not Required
Pilot Type
Internal Pilot
Operating Temperature - Maximum
50 Degrees C
Operating Temperature - Minimum
-10 Degrees C
Response Time
15 msec
Body Features
Single
Return Action
Spring Return
Standards
ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
Body Material
Die Cast Zinc
Number of Positions
Two-Position
Coefficient of Volume (Cv)
0.12
Voltage
24V DC
Power Consumption
0.5 W
Actuator Type
Single Solenoid
For Media
Air
Series
SYJ3000
Number of Ways
Five-Way
Item
Solenoid Air Control Valve
Electrical Connection Type
Plug-In
Includes Solenoid Coil
Solenoid Coil Included
Product Type
Solenoid Air Control Valve
Seal Material
Rubber
Valve Type
Spool
Valve Action
Normally Closed
Exhaust Port Connection Gender
Female
Number of Ports
5
Pilot Port Connection Gender
Female
Operating Pressure - Minimum
0.15 MPa

Description

Solenoid Air Control Valve, Voltage 24V DC, Center Position Not Applicable, Body Style Base-Mounted, Pilot Pressure 0.15 MPa, Power Consumption 0.5 W, Override Non-Locking, Overall Height 39 3/32 mm, Overall Length 64 5/16 mm, Overall Width 11 mm, Standards ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
