Shop SMC

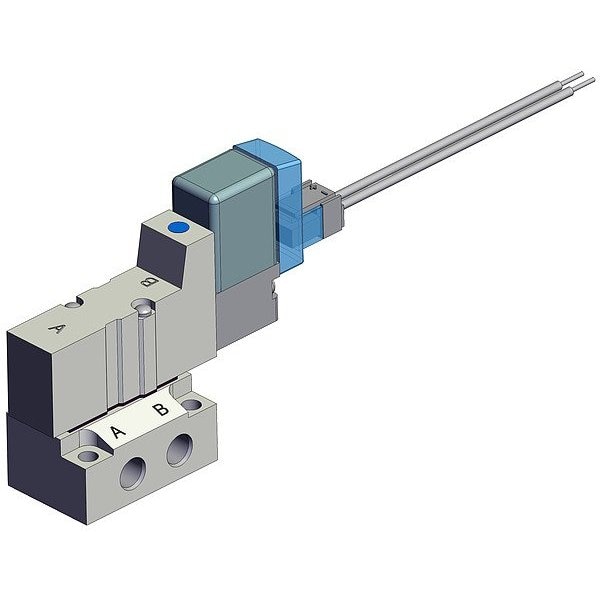

Solenoid Air Control Valve, 64 5/16 mm L

  • Mfr # SYJ3143-5LZ-M5

  • Zoro # G521914715

product price:
$
64.89
/ea

Key Features

Return Action
Spring Return
Number of Positions
Two-Position
Body Material
Die Cast Zinc
Actuator Type
Single Solenoid
Inlet Port Connection Size
M5
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
SYJ3143-5LZ-M5
Zoro #
G521914715
UPC #
-
Country of Origin
United States
Return Action
Spring Return
Number of Positions
Two-Position
Item
Solenoid Air Control Valve
Body Material
Die Cast Zinc
Actuator Type
Single Solenoid
Override
Non-Locking
For Media
Air
Operating Temperature - Maximum
50 Degrees C
Operating Pressure - Minimum
0.15 MPa
Includes Solenoid Coil
Solenoid Coil Included
Product Type
Solenoid Air Control Valve
Voltage
24V DC
Seal Material
Rubber
Operating Pressure - Maximum
0.7 MPa
Response Time
15 msec
Body Style
Base-Mounted
Series
SYJ3000
Valve Type
Spool
Coefficient of Volume (Cv)
0.12
Inlet Port Connection Gender
Female
Body Features
Single
Operating Temperature - Minimum
-10 Degrees C
Number of Ports
5
Exhaust Port Connection Gender
Female
Pilot Port Connection Gender
Female
Number of Ways
Five-Way
Pilot Type
Internal Pilot
Valve Action
Normally Closed
Standards
ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
Power Consumption
0.5 W
Electrical Connection Type
Plug-In
Lubrication
Lubrication Not Required
Pilot Pressure
0.15 MPa

Description

Solenoid Air Control Valve, Voltage 24V DC, Center Position Not Applicable, Body Style Base-Mounted, Pilot Pressure 0.15 MPa, Power Consumption 0.5 W, Override Non-Locking, Overall Height 39 3/32 mm, Overall Length 64 5/16 mm, Overall Width 11 mm, Standards ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
