Shop SMC

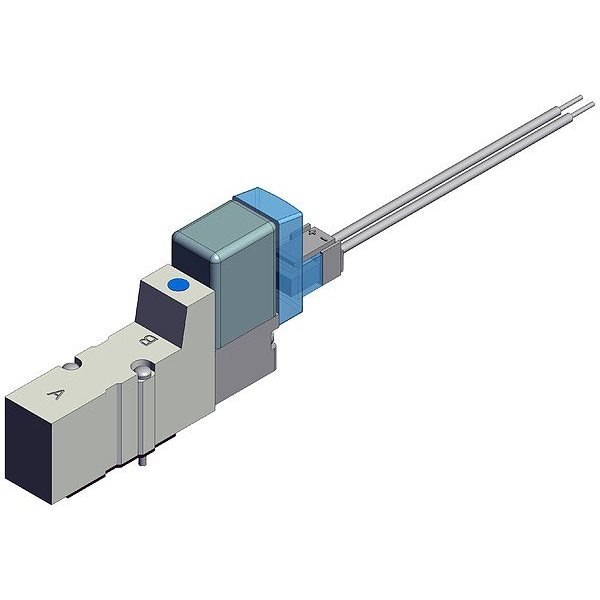

Solenoid Air Control Valve, 64 5/16 mm L

  • Mfr # SYJ3143-5LZ
  • Zoro # G921915961
product price:
$
47.49
/ea

Key Features

Overall Width
11 mm
Product Type
Solenoid Air Control Valve
Pilot Type
Internal Pilot
Wire Rope Length
64 5/16 mm
Number of Ways
Five-Way
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SYJ3143-5LZ
Zoro #
G921915961
UPC #
-
Country of Origin
Japan

Dimensions

Overall Width
11 mm
Wire Rope Length
64 5/16 mm
Overall Height
39 3/32 mm
Overall Length
64 5/16 mm
Length
64 5/16 mm

Details

Item
Solenoid Air Control Valve
Product Type
Solenoid Air Control Valve
Pilot Type
Internal Pilot
Number of Ways
Five-Way
Lubrication
Lubrication Not Required
Standards
ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
Operating Pressure - Minimum
0.15 MPa
Pilot Pressure
0.15 MPa
Inlet Port Connection Gender
Female
Exhaust Port Connection Gender
Female
Voltage
24V DC
Valve Type
Spool
Response Time
15 msec
Includes Solenoid Coil
Solenoid Coil Included
Power Consumption
0.5 W
Actuator Type
Single Solenoid
Body Material
Die Cast Zinc
Operating Temperature - Maximum
50 Degrees C
Valve Action
Normally Closed
For Media
Air
Number of Ports
5
Series
SYJ3000
Seal Material
Rubber
Body Style
Base-Mounted
Body Features
Single
Operating Pressure - Maximum
0.7 MPa
Override
Non-Locking
Return Action
Spring Return
Coefficient of Volume (Cv)
0.12
Electrical Connection Type
Plug-In
Operating Temperature - Minimum
-10 Degrees C
Pilot Port Connection Gender
Female
Number of Positions
Two-Position

Description

Solenoid Air Control Valve, Voltage 24V DC, Center Position Not Applicable, Body Style Base-Mounted, Pilot Pressure 0.15 MPa, Power Consumption 0.5 W, Override Non-Locking, Overall Height 39 3/32 mm, Overall Length 64 5/16 mm, Overall Width 11 mm, Standards ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
