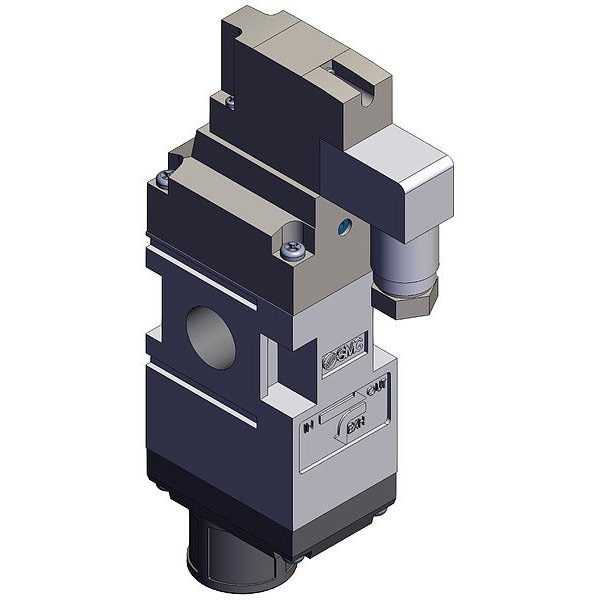

Solenoid Air Control Valve, 70 13/16 mm L

  • Mfr # VP517KY-5DZ1

  • Zoro # G321915349

product price:
$
111.99
/ea
Free Shipping & Returns

Key Features

Inlet Port Connection Type
BSPP
Includes Solenoid Coil
Solenoid Coil Included
Operating Temperature - Maximum
50 Degrees C
Overall Width
32 mm
Pilot Type
Internal Pilot
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
VP517KY-5DZ1
Zoro #
G321915349
UPC #
-
Country of Origin
Japan
Inlet Port Connection Type
BSPP
Includes Solenoid Coil
Solenoid Coil Included
Operating Temperature - Maximum
50 Degrees C
Pilot Type
Internal Pilot
Series
VP500
Body Material
Aluminum
Body Style
Body-Ported
Actuator Type
Single Solenoid
Power Consumption
0.45 W
Pilot Pressure
0.2 MPa
Electrical Connection Type
DIN Solenoid Connector
Return Action
Spring Return
Valve Type
Spool
Body Features
Single
Exhaust Port Connection Type
BSPP
Seal Material
Rubber
Inlet Port Connection Gender
Female
Exhaust Port Connection Gender
Female
Number of Ways
Three-Way
Override
Non-Locking
Response Time
41 msec
Number of Ports
3
Pilot Port Connection Gender
Female
Valve Action
Normally Closed
Coefficient of Volume (Cv)
2
Product Type
Solenoid Air Control Valve
Number of Positions
Two-Position
Voltage
24V DC
Operating Pressure - Maximum
0.7 MPa
Operating Pressure - Minimum
0.2 MPa
Operating Temperature - Minimum
-10 Degrees C
Item
Solenoid Air Control Valve

Description

Solenoid Air Control Valve, Voltage 24V DC, Center Position Not Applicable, Body Style Body-Ported, Pilot Pressure 0.2 MPa, Power Consumption 0.45 W, Override Non-Locking, Overall Height 145 19/32 mm, Overall Length 70 13/16 mm, Overall Width 32 mm
