Shop SMC

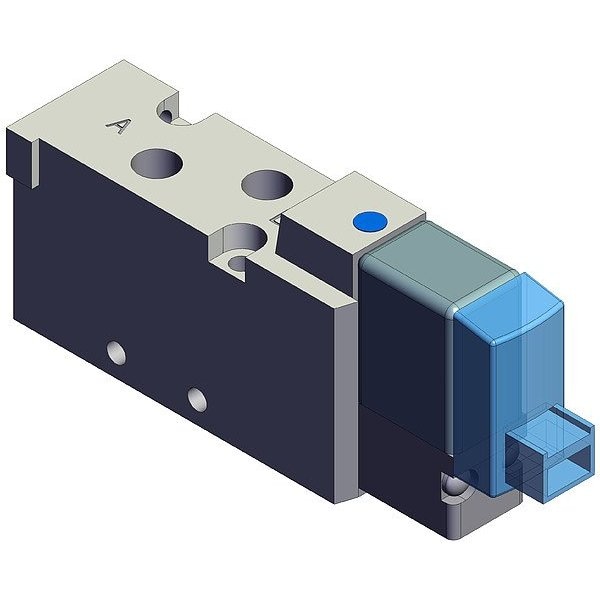

Solenoid Air Control Valve, 73 mm L

  • Mfr # SYJ5120-5LOZ-M5

  • Zoro # G321915172

product price:  $63.45
/ea

Key Features

Overall Width
16 mm
Lubrication
Lubrication Not Required
Number of Ways
Five-Way
Operating Temperature - Maximum
50 Degrees C
Body Material
Aluminum
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SYJ5120-5LOZ-M5
Zoro #
G321915172
UPC #
-
Country of Origin
Japan

Dimensions

Overall Width
16 mm
Exhaust Port Connection Size
M5
Overall Length
73 mm
Overall Height
39 3/16 mm
Inlet Port Connection Size
M5
Pilot Port Connection Size
M5
Wire Rope Length
73 mm

Details

Lubrication
Lubrication Not Required
Number of Ways
Five-Way
Operating Temperature - Maximum
50 Degrees C
Body Material
Aluminum
For Media
Air
Standards
ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
Item
Solenoid Air Control Valve
Pilot Pressure
0.15 MPa
Body Style
Body-Ported
Operating Pressure - Minimum
0.1 MPa
Return Action
Spring Return
Number of Ports
5
Exhaust Port Connection Type
BSPT
Exhaust Port Connection Gender
Female
Pilot Port Connection Gender
Female
Seal Material
Rubber
Inlet Port Connection Gender
Female
Power Consumption
0.5 W
Number of Positions
Two-Position
Coefficient of Volume (Cv)
0.21
Inlet Port Connection Type
BSPT
Response Time
25 msec
Includes Solenoid Coil
Solenoid Coil Included
Operating Pressure - Maximum
0.7 MPa
Product Type
Solenoid Air Control Valve
Electrical Connection Type
Plug-In
Voltage
24V DC
Series
SYJ5000
Body Features
Single
Valve Action
Normally Closed
Actuator Type
Single Solenoid
Valve Type
Spool
Override
Non-Locking
Pilot Type
Internal Pilot
Operating Temperature - Minimum
-10 Degrees C

Description

Solenoid Air Control Valve, Voltage 24V DC, Center Position Not Applicable, Body Style Body-Ported, Pilot Pressure 0.15 MPa, Power Consumption 0.5 W, Override Non-Locking, Overall Height 39 3/16 mm, Overall Length 73 mm, Overall Width 16 mm, Standards ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
