Shop SMC

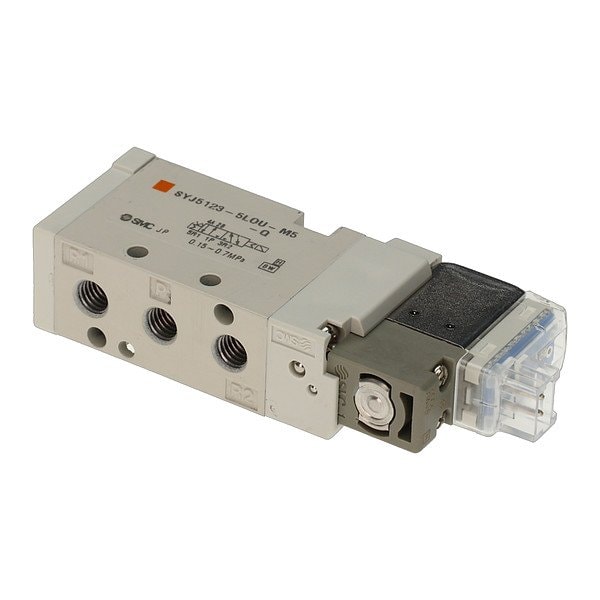

Solenoid Air Control Valve, 73 mm L

  • Mfr # SYJ5123-5LOU-M5-Q

  • Zoro # G721915710

product price:
$
62.99
/ea

Key Features

Body Features
Single
Pilot Pressure
0.15 MPa
Pilot Type
Internal Pilot
Lubrication
Lubrication Not Required
Valve Type
Spool
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
SYJ5123-5LOU-M5-Q
Zoro #
G721915710
UPC #
-
Country of Origin
Japan
Body Features
Single
Pilot Pressure
0.15 MPa
Pilot Type
Internal Pilot
Lubrication
Lubrication Not Required
Valve Type
Spool
Number of Ports
5
Response Time
25 msec
Return Action
Spring Return
Number of Positions
Two-Position
Exhaust Port Connection Type
BSPT
Coefficient of Volume (Cv)
0.21
Operating Temperature - Minimum
-10 Degrees C
Item
Solenoid Air Control Valve
Standards
ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
Body Material
Aluminum
Inlet Port Connection Type
BSPT
Number of Ways
Five-Way
Operating Pressure - Minimum
0.1 MPa
Override
Non-Locking
Seal Material
Rubber
For Media
Air
Inlet Port Connection Gender
Female
Operating Pressure - Maximum
0.7 MPa
Power Consumption
0.5 W
Exhaust Port Connection Gender
Female
Actuator Type
Single Solenoid
Product Type
Solenoid Air Control Valve
Valve Action
Normally Closed
Series
SYJ5000
Body Style
Body-Ported
Operating Temperature - Maximum
50 Degrees C
Voltage
24V DC
Pilot Port Connection Gender
Female
Electrical Connection Type
Plug-In
Includes Solenoid Coil
Solenoid Coil Included

Description

Solenoid Air Control Valve, Voltage 24V DC, Center Position Not Applicable, Body Style Body-Ported, Pilot Pressure 0.15 MPa, Power Consumption 0.5 W, Override Non-Locking, Overall Height 39 3/16 mm, Overall Length 73 mm, Overall Width 16 mm, Standards ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
