Shop SMC

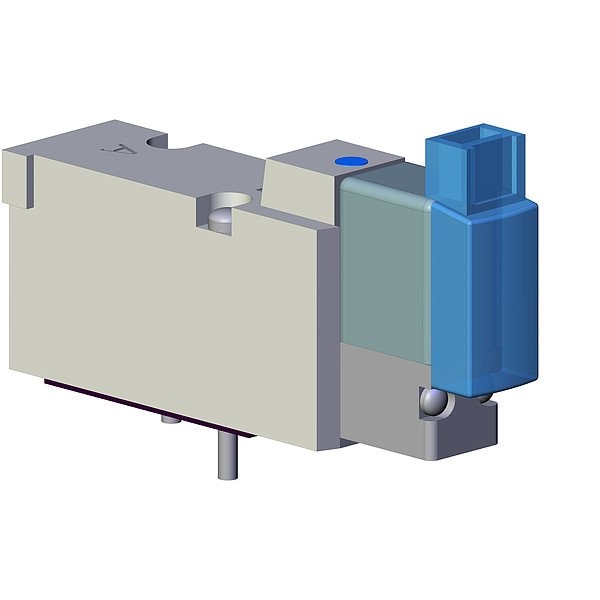

Solenoid Air Control Valve, 73 mm L

  • Mfr # SYJ5140-5MOZ

  • Zoro # G921914995

product price:
$
63.45
/ea

Key Features

Electrical Connection Type
Plug-In
For Media
Air
Exhaust Port Connection Gender
Female
Series
SYJ5000
Overall Height
39 3/16 mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SYJ5140-5MOZ
Zoro #
G921914995
UPC #
-
Country of Origin
Japan

Dimensions

Overall Height
39 3/16 mm
Wire Rope Length
73 mm
Overall Width
16 mm
Overall Length
73 mm
Length
73 mm

Details

Electrical Connection Type
Plug-In
For Media
Air
Item
Solenoid Air Control Valve
Exhaust Port Connection Gender
Female
Series
SYJ5000
Lubrication
Lubrication Not Required
Body Features
Single
Actuator Type
Single Solenoid
Operating Pressure - Maximum
0.7 MPa
Includes Solenoid Coil
Solenoid Coil Included
Pilot Type
Internal Pilot
Body Style
Base-Mounted
Return Action
Spring Return
Number of Ports
5
Voltage
24V DC
Power Consumption
0.5 W
Number of Positions
Two-Position
Inlet Port Connection Gender
Female
Coefficient of Volume (Cv)
0.21
Override
Non-Locking
Response Time
25 msec
Operating Pressure - Minimum
0.1 MPa
Operating Temperature - Maximum
50 Degrees C
Number of Ways
Five-Way
Operating Temperature - Minimum
-10 Degrees C
Valve Type
Spool
Product Type
Solenoid Air Control Valve
Pilot Pressure
0.15 MPa
Body Material
Aluminum
Valve Action
Normally Closed
Seal Material
Rubber
Standards
ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
Pilot Port Connection Gender
Female

Description

Solenoid Air Control Valve, Voltage 24V DC, Center Position Not Applicable, Body Style Base-Mounted, Pilot Pressure 0.15 MPa, Power Consumption 0.5 W, Override Non-Locking, Overall Height 39 3/16 mm, Overall Length 73 mm, Overall Width 16 mm, Standards ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
