Shop SMC

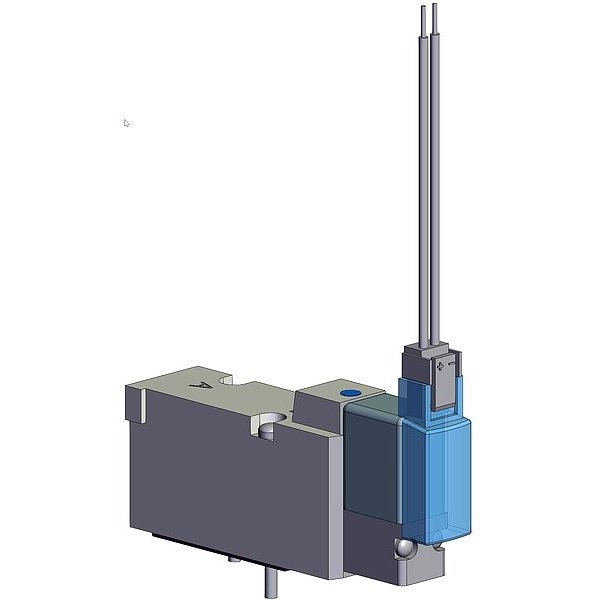

Solenoid Air Control Valve, 73 mm L

  • Mfr # SYJ5140-5MZ

  • Zoro # G521914531

product price:
$
64.19
/ea

Key Features

Power Consumption
0.5 W
Number of Ports
5
Inlet Port Connection Gender
Female
Lubrication
Lubrication Not Required
Valve Type
Spool
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SYJ5140-5MZ
Zoro #
G521914531
UPC #
-
Country of Origin
Japan

Dimensions

Wire Rope Length
73 mm
Overall Height
39 3/16 mm
Overall Width
16 mm
Overall Length
73 mm
Length
73 mm

Details

Power Consumption
0.5 W
Number of Ports
5
Inlet Port Connection Gender
Female
Lubrication
Lubrication Not Required
Valve Type
Spool
Seal Material
Rubber
Number of Positions
Two-Position
Override
Non-Locking
Item
Solenoid Air Control Valve
Product Type
Solenoid Air Control Valve
Operating Temperature - Maximum
50 Degrees C
Number of Ways
Five-Way
Body Features
Single
Series
SYJ5000
Actuator Type
Single Solenoid
Response Time
25 msec
Exhaust Port Connection Gender
Female
Operating Temperature - Minimum
-10 Degrees C
Electrical Connection Type
Plug-In
Operating Pressure - Minimum
0.1 MPa
Voltage
24V DC
Operating Pressure - Maximum
0.7 MPa
Return Action
Spring Return
Standards
ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
Body Style
Base-Mounted
Pilot Pressure
0.15 MPa
Body Material
Aluminum
Includes Solenoid Coil
Solenoid Coil Included
Pilot Port Connection Gender
Female
For Media
Air
Coefficient of Volume (Cv)
0.21
Pilot Type
Internal Pilot
Valve Action
Normally Closed

Description

Solenoid Air Control Valve, Voltage 24V DC, Center Position Not Applicable, Body Style Base-Mounted, Pilot Pressure 0.15 MPa, Power Consumption 0.5 W, Override Non-Locking, Overall Height 39 3/16 mm, Overall Length 73 mm, Overall Width 16 mm, Standards ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
