Shop SMC

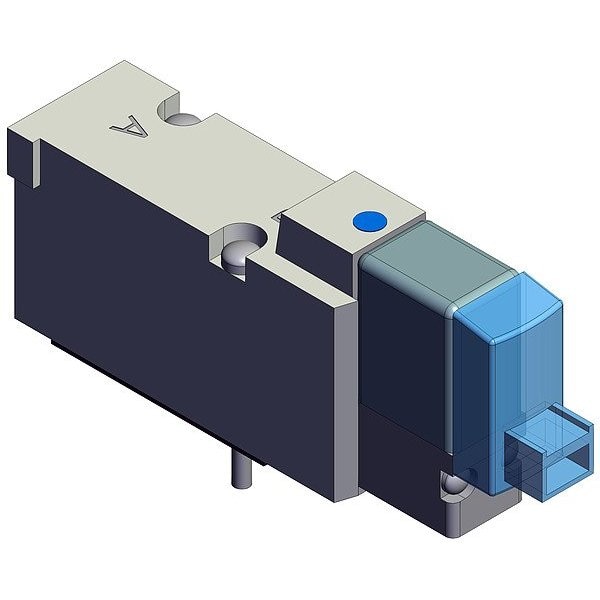

Solenoid Air Control Valve, 73 mm L

  • Mfr # SYJ5143-5LOZ
  • Zoro # G021915786
product price:
$
86.49
/ea

Key Features

Operating Pressure - Minimum
0.1 MPa
Override
Non-Locking
Actuator Type
Single Solenoid
Series
SYJ5000
Power Consumption
0.5 W
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
SYJ5143-5LOZ
Zoro #
G021915786
UPC #
-
Country of Origin
Japan
Operating Pressure - Minimum
0.1 MPa
Override
Non-Locking
Actuator Type
Single Solenoid
Series
SYJ5000
Power Consumption
0.5 W
Number of Ports
5
For Media
Air
Lubrication
Lubrication Not Required
Includes Solenoid Coil
Solenoid Coil Included
Body Style
Base-Mounted
Valve Action
Normally Closed
Standards
ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
Number of Positions
Two-Position
Pilot Port Connection Gender
Female
Electrical Connection Type
Plug-In
Operating Temperature - Maximum
50 Degrees C
Body Features
Single
Pilot Type
Internal Pilot
Return Action
Spring Return
Exhaust Port Connection Gender
Female
Seal Material
Rubber
Product Type
Solenoid Air Control Valve
Operating Temperature - Minimum
-10 Degrees C
Inlet Port Connection Gender
Female
Valve Type
Spool
Response Time
25 msec
Operating Pressure - Maximum
0.7 MPa
Body Material
Aluminum
Pilot Pressure
0.15 MPa
Voltage
24V DC
Number of Ways
Five-Way
Item
Solenoid Air Control Valve
Coefficient of Volume (Cv)
0.21

Dimensions

Overall Height
39 3/16 mm
Wire Rope Length
73 mm
Overall Width
16 mm
Overall Length
73 mm
Length
73 mm

Description

Solenoid Air Control Valve, Voltage 24V DC, Center Position Not Applicable, Body Style Base-Mounted, Pilot Pressure 0.15 MPa, Power Consumption 0.5 W, Override Non-Locking, Overall Height 39 3/16 mm, Overall Length 73 mm, Overall Width 16 mm, Standards ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
