Shop SMC

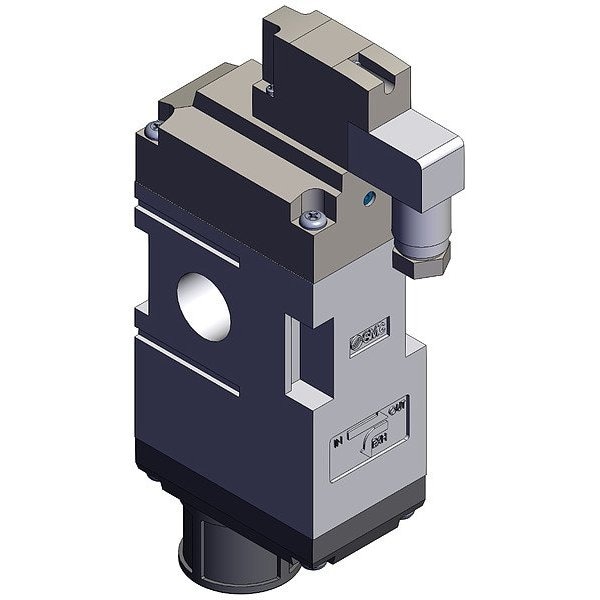

Solenoid Air Control Valve, 88 13/16 mm L

  • Mfr # VP717Y-5DZ1

  • Zoro # G721915475

product price:
$
140.99
/ea
Free Shipping & Returns

Key Features

Exhaust Port Connection Size
1/2
Number of Ways
Three-Way
Inlet Port Connection Gender
Female
Product Type
Solenoid Air Control Valve
Valve Type
Spool
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
VP717Y-5DZ1
Zoro #
G721915475
UPC #
-
Country of Origin
Japan
Number of Ways
Three-Way
Inlet Port Connection Gender
Female
Product Type
Solenoid Air Control Valve
Valve Type
Spool
Response Time
48 msec
Coefficient of Volume (Cv)
2.9
Exhaust Port Connection Type
BSPP
Body Style
Body-Ported
Valve Action
Normally Closed
Exhaust Port Connection Gender
Female
Operating Pressure - Maximum
0.7 MPa
Operating Temperature - Maximum
50 Degrees C
Number of Positions
Two-Position
Operating Pressure - Minimum
0.2 MPa
Body Features
Single
Electrical Connection Type
DIN Solenoid Connector
Pilot Type
Internal Pilot
Item
Solenoid Air Control Valve
Actuator Type
Single Solenoid
Pilot Pressure
0.2 MPa
Power Consumption
0.45 W
Includes Solenoid Coil
Solenoid Coil Included
Seal Material
Rubber
Number of Ports
3
Operating Temperature - Minimum
-10 Degrees C
Body Material
Aluminum
Voltage
24V DC
Pilot Port Connection Gender
Female
Override
Non-Locking
Series
VP700
Inlet Port Connection Type
BSPP
Return Action
Spring Return

Description

Solenoid Air Control Valve, Voltage 24V DC, Center Position Not Applicable, Body Style Body-Ported, Pilot Pressure 0.2 MPa, Power Consumption 0.45 W, Override Non-Locking, Overall Height 173 13/32 mm, Overall Length 88 13/16 mm, Overall Width 40 mm
