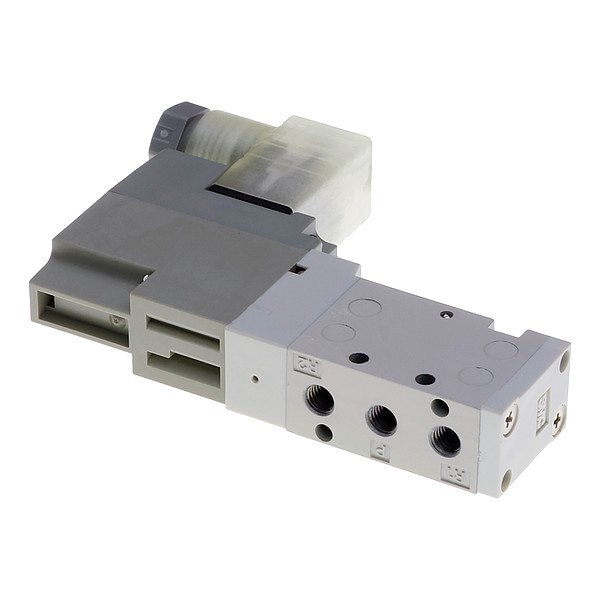

Solenoid Air Control Valve, 92 3/32 mm L

  • Mfr # SYJ5120-5DZ-M5

  • Zoro # G121915211

product price:
$
75.69
/ea

Key Features

Seal Material
Rubber
Return Action
Spring Return
Body Material
Aluminum
Wire Rope Length
92 3/32 mm
Inlet Port Connection Type
BSPT
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SYJ5120-5DZ-M5
Zoro #
G121915211
UPC #
-
Country of Origin
Japan

Dimensions

Wire Rope Length
92 3/32 mm
Overall Width
16 mm
Exhaust Port Connection Size
M5
Overall Height
60 29/32 mm
Pilot Port Connection Size
M5
Inlet Port Connection Size
M5
Overall Length
92 3/32 mm
Length
92 3/32 mm

Details

Seal Material
Rubber
Return Action
Spring Return
Body Material
Aluminum
Inlet Port Connection Type
BSPT
Pilot Port Connection Gender
Female
Pilot Type
Internal Pilot
Electrical Connection Type
DIN Solenoid Connector
Lubrication
Lubrication Not Required
Operating Temperature - Minimum
-10 Degrees C
Inlet Port Connection Gender
Female
Coefficient of Volume (Cv)
0.21
For Media
Air
Item
Solenoid Air Control Valve
Exhaust Port Connection Type
BSPT
Includes Solenoid Coil
Solenoid Coil Included
Valve Type
Spool
Number of Positions
Two-Position
Voltage
24V DC
Body Features
Single
Number of Ways
Five-Way
Number of Ports
5
Pilot Pressure
0.15 MPa
Response Time
25 msec
Operating Pressure - Maximum
0.7 MPa
Series
SYJ5000
Product Type
Solenoid Air Control Valve
Override
Non-Locking
Exhaust Port Connection Gender
Female
Body Style
Body-Ported
Operating Pressure - Minimum
0.1 MPa
Power Consumption
0.5 W
Standards
ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
Actuator Type
Single Solenoid
Operating Temperature - Maximum
50 Degrees C
Valve Action
Normally Closed

Description

Solenoid Air Control Valve, Voltage 24V DC, Center Position Not Applicable, Body Style Body-Ported, Pilot Pressure 0.15 MPa, Power Consumption 0.5 W, Override Non-Locking, Overall Height 60 29/32 mm, Overall Length 92 3/32 mm, Overall Width 16 mm, Standards ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
