Shop SMC

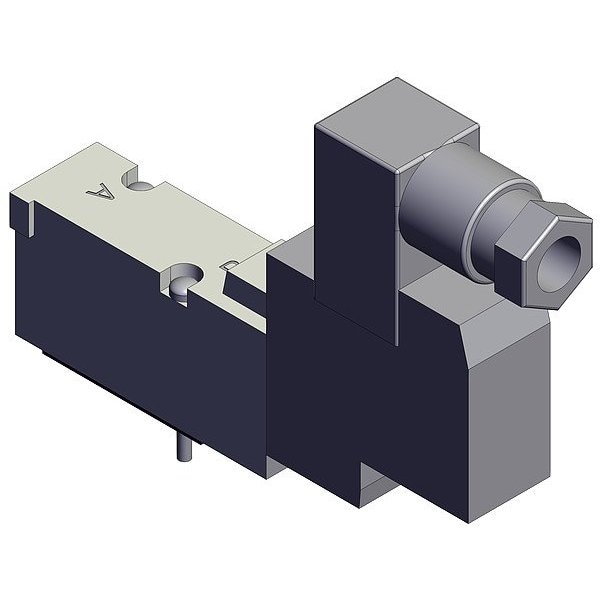

Solenoid Air Control Valve, 92 3/32 mm L

  • Mfr # SYJ5140-5DZ

  • Zoro # G221916170

product price:  $61.39
/ea

Key Features

Operating Pressure - Maximum
0.7 MPa
Override
Non-Locking
Pilot Pressure
0.15 MPa
Includes Solenoid Coil
Solenoid Coil Included
Electrical Connection Type
DIN Solenoid Connector
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SYJ5140-5DZ
Zoro #
G221916170
UPC #
-
Country of Origin
Japan

Dimensions

Wire Rope Length
92 3/32 mm
Overall Width
16 mm
Overall Height
60 29/32 mm
Overall Length
92 3/32 mm

Details

Operating Pressure - Maximum
0.7 MPa
Override
Non-Locking
Pilot Pressure
0.15 MPa
Includes Solenoid Coil
Solenoid Coil Included
Electrical Connection Type
DIN Solenoid Connector
Item
Solenoid Air Control Valve
For Media
Air
Body Style
Base-Mounted
Coefficient of Volume (Cv)
0.21
Standards
ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
Body Material
Aluminum
Response Time
25 msec
Number of Ways
Five-Way
Operating Temperature - Maximum
50 Degrees C
Exhaust Port Connection Gender
Female
Operating Pressure - Minimum
0.1 MPa
Operating Temperature - Minimum
-10 Degrees C
Inlet Port Connection Gender
Female
Number of Ports
5
Voltage
24V DC
Return Action
Spring Return
Number of Positions
Two-Position
Seal Material
Rubber
Valve Type
Spool
Pilot Port Connection Gender
Female
Pilot Type
Internal Pilot
Actuator Type
Single Solenoid
Body Features
Single
Product Type
Solenoid Air Control Valve
Series
SYJ5000
Valve Action
Normally Closed
Power Consumption
0.5 W
Lubrication
Lubrication Not Required

Description

Solenoid Air Control Valve, Voltage 24V DC, Center Position Not Applicable, Body Style Base-Mounted, Pilot Pressure 0.15 MPa, Power Consumption 0.5 W, Override Non-Locking, Overall Height 60 29/32 mm, Overall Length 92 3/32 mm, Overall Width 16 mm, Standards ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
