Shop SMC

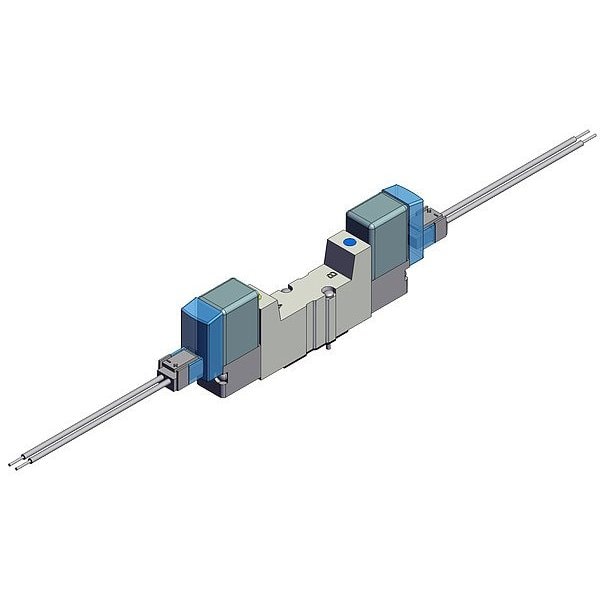

Solenoid Air Control Valve, 98 19/32 mm L

  • Mfr # SYJ3240-5LZ

  • Zoro # G721915895

product price:  $79.95
/ea

Key Features

Body Features
Double
Series
SYJ3000
Pilot Port Connection Gender
Female
Number of Ports
5
Number of Ways
Five-Way
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SYJ3240-5LZ
Zoro #
G721915895
UPC #
-
Country of Origin
Japan

Dimensions

Overall Height
39 3/32 mm
Wire Rope Length
98 19/32 mm
Overall Width
11 mm
Overall Length
98 19/32 mm

Details

Body Features
Double
Series
SYJ3000
Pilot Port Connection Gender
Female
Number of Ports
5
Number of Ways
Five-Way
Return Action
Pilot Return
Inlet Port Connection Gender
Female
Item
Solenoid Air Control Valve
Actuator Type
Double Solenoid
Coefficient of Volume (Cv)
0.12
Number of Positions
Two-Position
Product Type
Solenoid Air Control Valve
Operating Temperature - Maximum
50 Degrees C
Operating Temperature - Minimum
-10 Degrees C
For Media
Air
Pilot Pressure
0.1 MPa
Pilot Type
Internal Pilot
Seal Material
Rubber
Operating Pressure - Minimum
0.15 MPa
Body Style
Base-Mounted
Includes Solenoid Coil
Solenoid Coil Included
Power Consumption
0.5 W
Response Time
15 msec
Valve Type
Spool
Electrical Connection Type
Plug-In
Override
Non-Locking
Voltage
24V DC
Exhaust Port Connection Gender
Female
Operating Pressure - Maximum
0.7 MPa
Lubrication
Lubrication Not Required
Standards
ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
Valve Action
Normally Closed
Body Material
Die Cast Zinc

Description

Solenoid Air Control Valve, Voltage 24V DC, Center Position Not Applicable, Body Style Base-Mounted, Pilot Pressure 0.1 MPa, Power Consumption 0.5 W, Override Non-Locking, Overall Height 39 3/32 mm, Overall Length 98 19/32 mm, Overall Width 11 mm, Standards ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
