Shop SMC

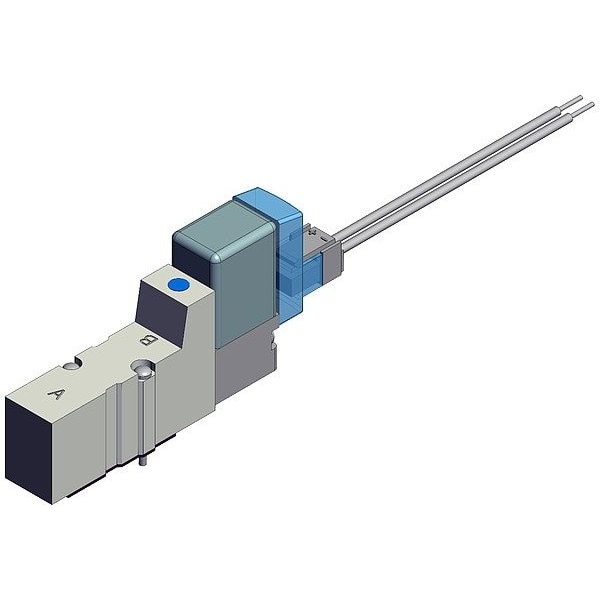

Solenoid Valve, Base-Mounted, SYJ3000, 24V DC

  • Mfr # SYJ3140-5LZ

  • Zoro # G915191272

product price:
$
47.49
/ea

Key Features

Body Style
Base-Mounted
Series
SYJ3000
Voltage
24V DC
Power Consumption
0.5 W
Overall Height
41 1/2 mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SYJ3140-5LZ
Zoro #
G915191272
UPC #
-
Country of Origin
Japan

Dimensions

Overall Height
41 1/2 mm
Overall Length
64 5/16 mm
Wire Rope Length
64 5/16 mm
Length
64 5/16 mm

Details

Item
Solenoid Valve
Body Style
Base-Mounted
Series
SYJ3000
Voltage
24V DC
Power Consumption
0.5 W
Body Material
Die Cast Zinc
Override
Non-Locking
Number of Ways
Five-Way
Standards
RoHS Compliant
Number of Positions
Two-Position
Operating Pressure - Minimum
0.15 MPa
Seal Material
Rubber
Product Type
Solenoid Air Control Valve
Operating Temperature - Maximum
50 Degrees C
Lubrication
Lubrication Not Required
Number of Ports
5
Operating Temperature - Minimum
-10 Degrees C
Electrical Connection Type
Plug-In
For Media
Air
Actuator Type
Single Solenoid
Operating Pressure - Maximum
0.7 MPa
Valve Type
Spool
Inlet Port Connection Gender
Female
Pilot Port Connection Gender
Female
Body Features
Single
Spool Material
Aluminum
Coefficient of Volume (Cv)
0.12
Exhaust Port Connection Gender
Female
Includes Solenoid Coil
Solenoid Coil Included
Pilot Type
Internal Pilot
Return Action
Single Solenoid Monostable
Flow Rate - Maximum
4.11 scfm

Description

Solenoid Valve, Voltage 24V DC, Center Position Not Applicable, Body Style Base-Mounted, Power Consumption 0.5 W, Override Non-Locking, Overall Height 41 1/2 mm, Overall Length 64 5/16 mm, Standards RoHS Compliant
