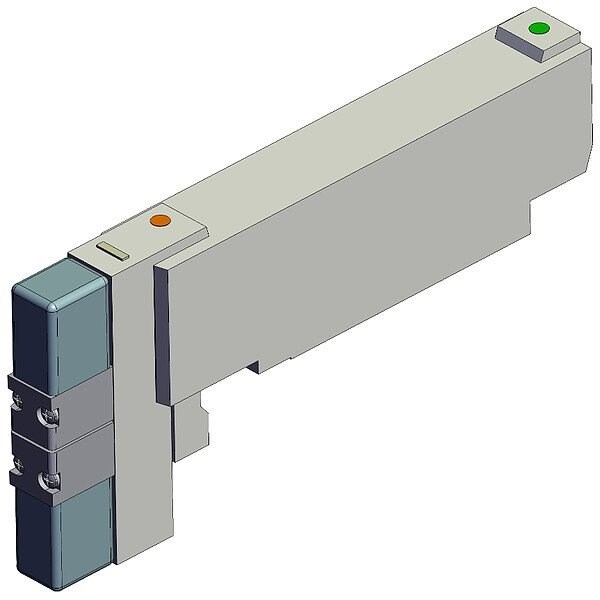

Smc Solenoid Valve, Base-Mounted, VQC2000, 24V DC VQC2A01N-51 - main

Solenoid Valve, Base-Mounted, VQC2000, 24V DC

  • Mfr # VQC2A01N-51

  • Zoro # G115854762

product price:  $109.99
/ea
Free Shipping & Returns

Key Features

Body Style
Base-Mounted
Series
VQC2000
Voltage
24V DC
Pilot Pressure
0.2 MPa
Body Material
Die Cast Zinc
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
VQC2A01N-51
Zoro #
G115854762
UPC #
-
Country of Origin
Japan

Details

Item
Solenoid Valve
Body Style
Base-Mounted
Series
VQC2000
Voltage
24V DC
Pilot Pressure
0.2 MPa
Body Material
Die Cast Zinc
Override
Non-Locking
Valve Type
Spool
Operating Temperature - Minimum
-10 Degrees C
Valve Action
Normally Closed
Flow Rate - Maximum
16.45 scfm
Spool Material
Aluminum
Number of Positions
Four-Position
Number of Ports
5
Standards
RoHS Compliant
Number of Ways
Five-Way
Seal Material
Rubber
Lubrication
Lubrication Not Required
Exhaust Port Connection Gender
Female
Body Features
Single
Coefficient of Volume (Cv)
0.48
Operating Pressure - Minimum
0.15 MPa
Actuator Type
Double Solenoid
Includes Solenoid Coil
Solenoid Coil Included
Product Type
Solenoid Air Control Valve
Pilot Type
Internal Pilot
Operating Temperature - Maximum
50 Degrees C
ISO Class
13849
Inlet Port Connection Gender
Female
Electrical Connection Type
Plug-In
Return Action
Single Solenoid Monostable
Pilot Port Connection Gender
Female
Operating Pressure - Maximum
0.7 MPa
For Media
Air, Inert Gas

Description

Solenoid Valve, Voltage 24V DC, Center Position Not Applicable, ISO Class 13849, Body Style Base-Mounted, Pilot Pressure 0.2 MPa, Override Non-Locking, Standards RoHS Compliant

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
