Shop SMC

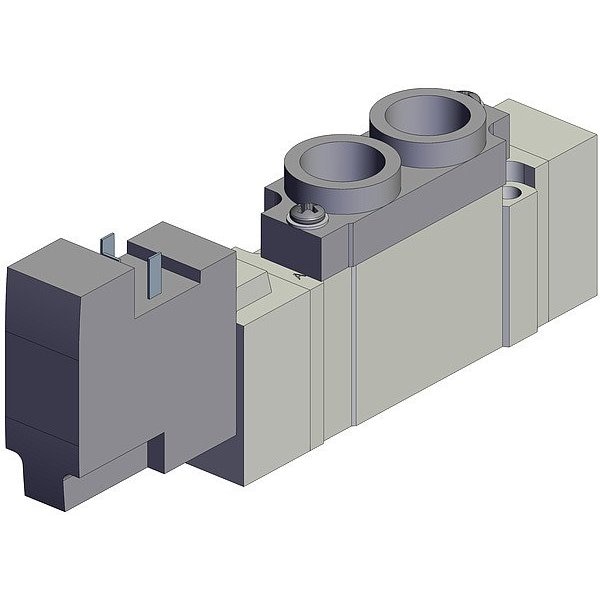

Solenoid Valve

  • Mfr # SY7120-5DOD-02T

  • Zoro # G715191748

product price:
$
72.19
/ea

Key Features

Body Style
Body-Ported
Series
SY7000
Voltage
24V DC
Pilot Pressure
35 psi
Power Consumption
0.35 W
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SY7120-5DOD-02T
Zoro #
G715191748
UPC #
-
Country of Origin
Japan

Dimensions

Overall Height
66 mm
Overall Length
120 mm
Exhaust Port Connection Size
1/4 in
Inlet Port Connection Size
1/4 in
Pilot Port Connection Size
1/4 in
Wire Rope Length
120 mm
Length
120 mm

Details

Item
Solenoid Valve
Body Style
Body-Ported
Series
SY7000
Voltage
24V DC
Pilot Pressure
35 psi
Power Consumption
0.35 W
Override
Locking
Standards
RoHS Compliant
Number of Positions
Two-Position
Number of Ways
Five-Way
Operating Temperature - Maximum
50 Degrees C
Seal Material
Rubber
Product Type
Solenoid Air Control Valve
Operating Temperature - Minimum
-10 Degrees C
Pilot Type
Internal Pilot
Operating Pressure - Maximum
0.7 MPa
Lubrication
Lubrication Not Required
Inlet Port Connection Type
NPT
Exhaust Port Connection Type
NPT
Actuator Type
Single Solenoid
For Media
Air
Body Features
Single
Number of Ports
5
Valve Type
Spool
Operating Pressure - Minimum
0.1 MPa
Inlet Port Connection Gender
Female
Spool Material
Aluminum
Pilot Port Connection Gender
Female
Includes Solenoid Coil
Solenoid Coil Included
Return Action
Single Solenoid Monostable
Coefficient of Volume (Cv)
0.93
Electrical Connection Type
DIN Solenoid Connector
Exhaust Port Connection Gender
Female
Flow Rate - Maximum
31.89 scfm
Body Material
Aluminum

Description

Solenoid Valve
