Shop SMC

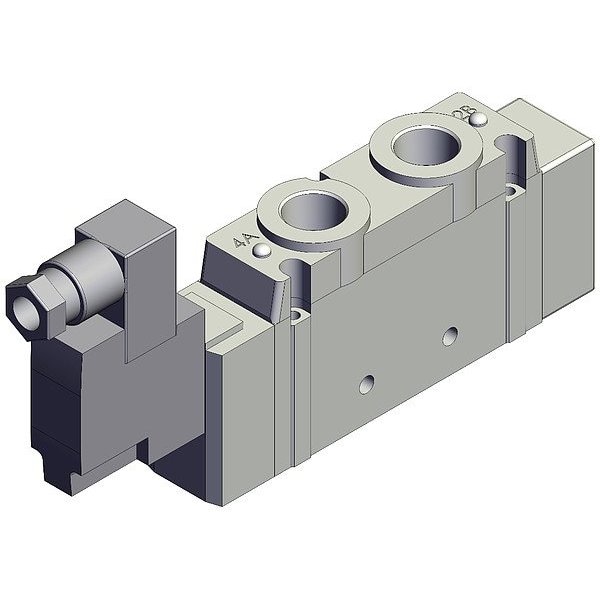

Solenoid Valve

  • Mfr # SY9120-5DZ-02
  • Zoro # G515197773
product price:
$
86.69
/ea

Key Features

Body Style
Body-Ported
Series
SY9000
Voltage
24V DC
Pilot Pressure
35 psi
Power Consumption
0.35 W
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SY9120-5DZ-02
Zoro #
G515197773
UPC #
-
Country of Origin
Japan

Dimensions

Overall Height
74 11/16 mm
Overall Length
150 3/32 mm
Inlet Port Connection Size
1/4 in
Pilot Port Connection Size
1/4 in
Exhaust Port Connection Size
1/4 in
Wire Rope Length
150 3/32 mm
Length
150 3/32 mm

Details

Item
Solenoid Valve
Body Style
Body-Ported
Series
SY9000
Voltage
24V DC
Pilot Pressure
35 psi
Power Consumption
0.35 W
Override
Non-Locking
Number of Ways
Five-Way
Number of Positions
Two-Position
Standards
RoHS Compliant
For Media
Air
Coefficient of Volume (Cv)
1.7
Actuator Type
Single Solenoid
Valve Type
Spool
Operating Pressure - Maximum
0.7 MPa
Operating Temperature - Maximum
50 Degrees C
Number of Ports
5
Lubrication
Lubrication Not Required
Operating Temperature - Minimum
-10 Degrees C
Pilot Type
Internal Pilot
Body Features
Single
Product Type
Solenoid Air Control Valve
Seal Material
Rubber
Operating Pressure - Minimum
0.1 MPa
Return Action
Single Solenoid Monostable
Exhaust Port Connection Type
BSPT
Includes Solenoid Coil
Solenoid Coil Included
Spool Material
Aluminum
Flow Rate - Maximum
58.29 scfm
Electrical Connection Type
DIN Solenoid Connector
Inlet Port Connection Type
BSPT
Body Material
Aluminum

Description

Solenoid Valve
