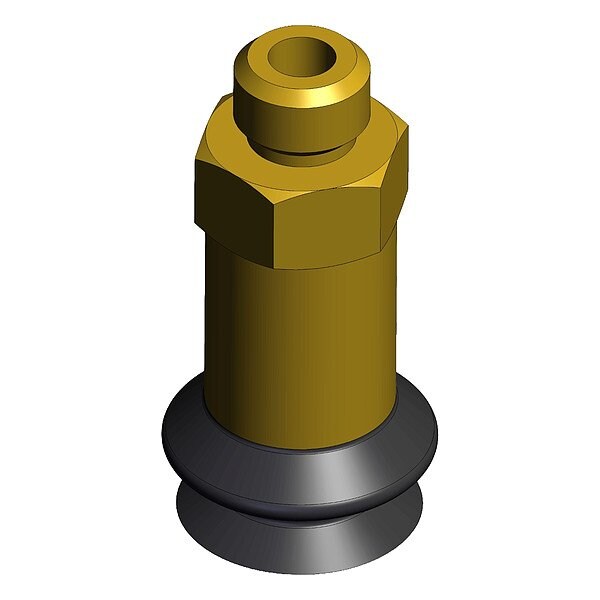

Vacuum Pad, Black, Bellows Pad
Mfr # ZPT08BU-A5
Zoro # G021914581
product price:Â
$
9.19
/ea
Key Features
Port Size
M5 x 0.8
Pad Material
Urethane Rubber
Standards
ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
Weight
0.02 lb
Outside Diameter
10 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- ZPT08BU-A5
- Zoro #
- G021914581
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Port Size
- M5 x 0.8
- Outside Diameter
- 10 mm
- Pad Diameter
- 8 mm
- Pad Height
- 20 mm
Details
- Pad Material
- Urethane Rubber
- Standards
- ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
- Weight
- 0.02 lb
- Port Type
- Metric
- Maximum Operating Temperature
- 200 Degrees C
- Pad Color
- Black
- Pad Type
- Bellows
- Item
- Vacuum Pad
- Durometer
- 50-60
- Minimum Operating Temperature
- 0 Degrees C
- Adapter Material
- Brass
- Series
- ZPT
Description
Item Vacuum Pad, Adapter Material Brass, Durometer 50-60, Maximum Operating Temperature 200 Degrees C, Minimum Operating Temperature 0 Degrees C, Number of Folds Not Applicable, Outside Diameter 10 mm, Pad Color Black, Pad Diameter 8 mm, Pad Height 20 mm, Pad Material Urethane Rubber, Pad Type Bellows, Port Size M5 x 0.8, Port Type Metric, Series ZPT, Standards ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed, Stroke Not Applicable, Weight 0.02 lb
