  10. /
  11. Cam Follower, Stud, 12800lb., 2.0000in.
Shop All Cam Followers & Track Rollers
Smith Bearing

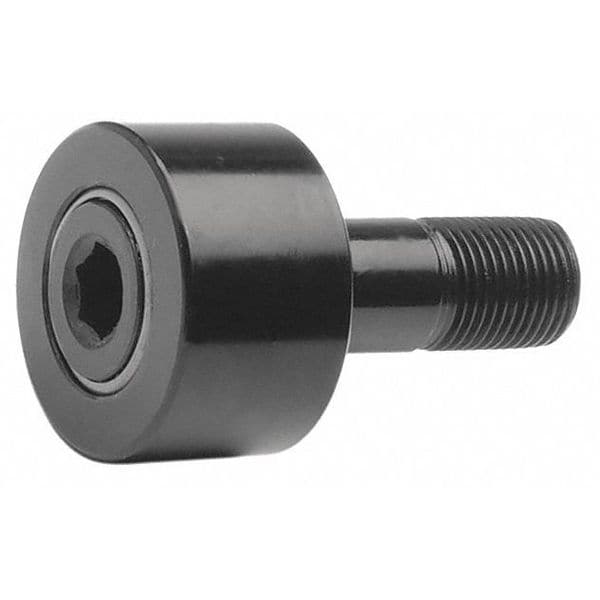

Cam Follower, Stud, 12800lb., 2.0000in.

product price: $65.95
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Roller Style Heavy Stud
  • Roller Shape Flat
  • Face Design Hex Socket
  • Roller Dia. 2 in
  • Roller Width 1 1/4 in
See all product information

Product Information

Dimensions

Roller Dia. 2 in
Roller Width 1 1/4 in
Stud Dia. 0.875 in
Stud Length 2 in
Stud Dia. (In.) 0.8750
Roller Dia. (mm) 50.8
Stud Length (In.) 2.000
Roller Width (In.) 1.2500
Roller Width (mm) 31.75
Roller Dia. (In.) 2.0000
Roller Diameter 2 in
Hex Drive Size 1/2 in
Stud Diameter 7/8 in
Stud Thread Length 1 in
Overall Length 3 9/32 in
Stud Thread Size 7/8"-14

Details

Roller Style Heavy Stud
Roller Shape Flat
Face Design Hex Socket
Stud Type Concentric
Item Cam Follower
Dynamic Load Capacity (Lb.) 12,800 lb
Static Load Capacity (Lb.) 17,700 lb
Roller Material Alloy Steel
Number of Bearings 1
Type Stud
Stud Material Carbon Steel
Bearing Material Alloy Steel
Bearing Type Needle Roller
Static Radial Load Capacity 17,700 lbf
Standards ABMA
Features Designed with a Double Row of Heavy Duty Rollers, Thicker Outer Rings and Special Full-Contact Seals
Drive Location Stud
Rolling Element Rows 2
Load Direction Radial
Roller Material Grade 52100
System of Measurement Inch
Duty Type Heavy
Dynamic Radial Load Capacity 12,800 lbf
Minimum Temperature -30 Degrees F
Maximum Temperature 250 Degrees F
Bearing Material Grade AISI 52100
Roller Head Type Flat
Seal Type Contact
Seal Material Molded Acetyl
Drive Type Hex Socket
Closure Double Sealed

Description

Cam Follower, Closure Double Sealed, Drive Type Hex Socket, Duty Type Heavy, Face Design Hex Socket, Overall Length 3 9/32 in, Roller Diameter 2 in, Roller Head Type Flat, Roller Material Alloy Steel, Roller Width 1 1/4 in, Rolling Element Rows 2, Seal Type Contact, Stud Material Carbon Steel, Stud Thread Size 7/8 In.-14, Stud Type Concentric, System of Measurement Inch, Bearing Material Alloy Steel, Bearing Material Grade AISI 52100, Bearing Type Needle Roller, Drive Location Stud
