  11. Track Roller, Crowned Head, 3 3/8 in L

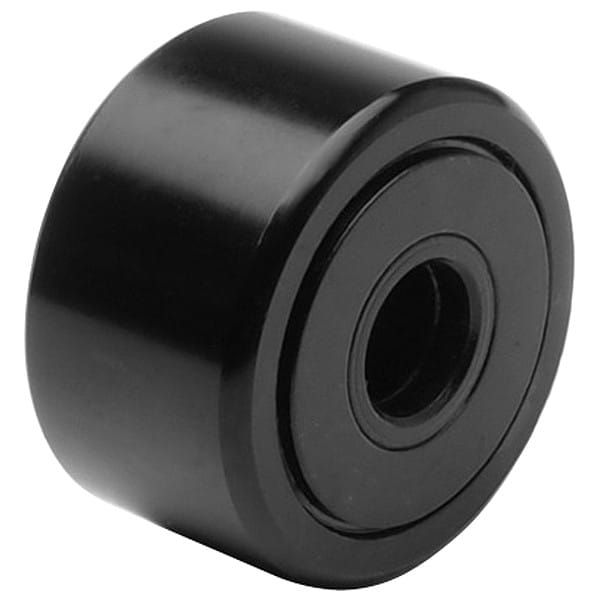

Smith Bearing Track Roller, Crowned Head, 3 3/8 in L YR-6-XC - main

Track Roller, Crowned Head, 3 3/8 in L

  • Mfr # YR-6-XC

  • Zoro # G207200071

product price: $844.99
/ea
Free Shipping & Returns

Key Features

Face Design
Plain
Roller Width
3 1/4 in
Bearing Type
Needle Roller
Roller Material
Alloy Steel
Bearing Material
Alloy Steel
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
YR-6-XC
Zoro #
G207200071
UPC #
-
Country of Origin
Multiple

Dimensions

Roller Width
3 1/4 in
Roller Diameter
6 in
Overall Length
3 3/8 in
Bore Diameter
2 1/4 in

Details

Face Design
Plain
Bearing Type
Needle Roller
Item
Track Roller
Roller Material
Alloy Steel
Bearing Material
Alloy Steel
Load Direction
Radial
Features
Bearing Capacity of the CR Stud Type Series is Limited by the Moderately Sized Stud, Choice of Non-Crowned or Crowned Outer Race, The CR and YR Series Needle Roller Bearings are Recommended where Running Loads and Shock Loads are Moderate
Standards
AS 9100, ISO 9001
Roller Head Type
Crowned
System of Measurement
Inch
Rolling Element Rows
1
Duty Type
Standard
Minimum Temperature
-40 Degrees F
Maximum Temperature
250 Degrees F
Closure
Double Sealed
Roller Material Grade
SAE 52100
Seal Type
Contact
Bearing Material Grade
52100
Seal Material
Molded Acetyl
Static Radial Load Capacity
162,000 lbf
Dynamic Radial Load Capacity
71,400 lbf

Description

Track Roller, Bore Diameter 2 1/4 in, Closure Double Sealed, Duty Type Standard, Overall Length 3 3/8 in, Roller Diameter 6 in, Roller Head Type Crowned, Roller Material Alloy Steel, Roller Width 3 1/4 in, Rolling Element Rows 1, Seal Type Contact, System of Measurement Inch, Bearing Material Alloy Steel, Bearing Material Grade 52100, Bearing Type Needle Roller, Dynamic Radial Load Capacity 71,400 lbf
