  9. Flow Gauge Regulator, Argon, Single Stage, 0.965"-14 Inlet, 5/8"-18 Outlet, 50 cfh

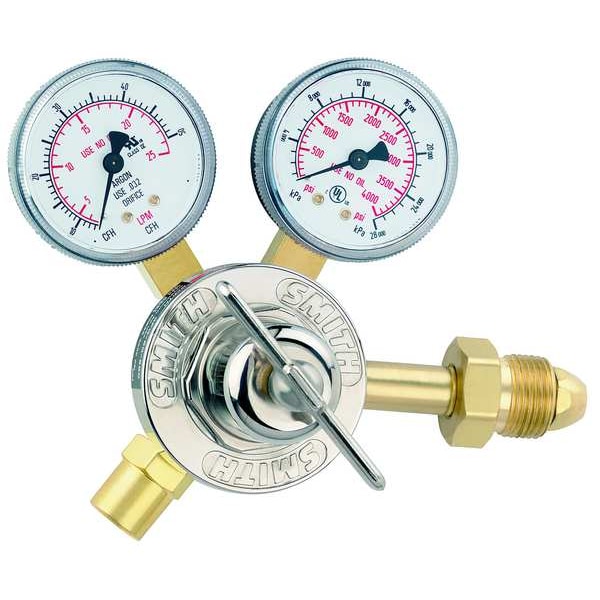

Smith Equipment Flow Gauge Regulator, Argon, Single Stage, 0.965"-14 Inlet, 5/8"-18 Outlet, 50 cfh 31-50-580 - main

Flow Gauge Regulator, Argon, Single Stage, 0.965"-14 Inlet, 5/8"-18 Outlet, 50 cfh

  • Mfr # 31-50-580

  • Zoro # G3098602

product price: $171.99
/ea
Free Shipping & Returns

Key Features

Compatible Gas Type
Argon
Outlet Connection Size
5/8"-18
Body Material
Brass
Number of Stages
Single Stage
Outlet Pressure (Maximum)
50 psig
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
31-50-580
Zoro #
G3098602
UPC #
014495263116
Country of Origin
United States

Dimensions

Outlet Connection Size
5/8"-18
Gauge Diameter
2 in
Inlet Connection Size
0.965"-14
Overall Length
3-3/8"
Hose Fitting Size
B (Inert)
Body Diameter
2.0 in
Dedupe with CGA Number and Inlet Connection Size
CGA 580

Details

Item
Flow Gauge Regulator
Compatible Gas Type
Argon
Body Material
Brass
Number of Stages
Single Stage
Outlet Pressure (Maximum)
50 psig
Regulator Supply Type
Cylinder
Regulator Capacity
Medium Duty
Stages
Single Stage
Standards
UL Listed
Diaphragm Material
Neoprene
Delivery Pressure Range
50 cfh
Application
General Purpose
Includes
Nickel-Plated Bonnet, Self Reseting Safety Relief Valve, Sure Seat(TM) Filtered Seat
Delivery
0 to 50 scfh
Gauges Delivery Pressure
50 cfh
Regulator Application
General Purpose
Supply Pressure Gauge
4,000 psi
Duty Rating
Heavy Duty
Type
Single Stage
Features
Three-Year Warranty, Self-Resetting Pressure Relief Valve
Outlet Connection Gender
Female
Product Type
Flow Gauge Regulator
CGA Number
CGA 580
Inlet Thread Direction
Right Hand
Control Type
Knob
Flowmeter Series
30
Outlet Thread Direction
Right Hand
Argon Flow Rate (Minimum)
10 scfh
Inlet Connection Type
NGO
Carbon Dioxide Flow Rate (Maximum)
50 scfh
Argon Flow Rate (Maximum)
50 scfh
Outlet Connection Type
UNF
Maximum Gauge Inlet Pressure
3,000 psig
Inlet Connection Gender
Female
Inlet Pressure (Maximum)
3,000 psig
Regulator Series
30

Description

Flow Gauge Regulator, Compatible Gas Type Argon, Mounting Type Cylinder, Inlet Connection Gender Female, Inlet Thread Direction Right Hand, Inlet Connection Size 0.965 In.-14, Inlet Connection Type NGO, Maximum Inlet Pressure 3,000 psig, Outlet Pressure (Maximum) 50 psig, Outlet Connection Gender Female, Outlet Connection Size 5/8 In.-18, Outlet Connection Type UNF, Argon Flow Rate (Maximum) 50 scfh, Carbon Dioxide Flow Rate (Maximum) 50 scfh, Number of Stages Single Stage
