  5. Gas Regulator, Acetylene, Single Stage, 0.825"-14 Inlet, 9/16"-18 Outlet, 15 psi

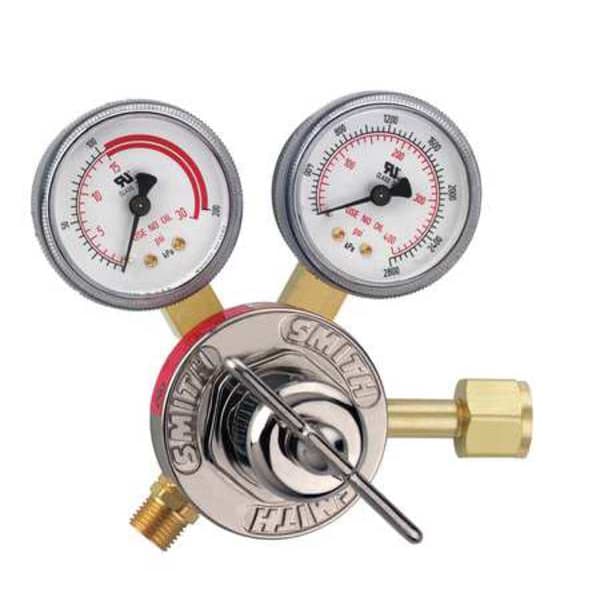

Smith Equipment Gas Regulator, Acetylene, Single Stage, 0.825"-14 Inlet, 9/16"-18 Outlet, 15 psi 30-15-300 - main

Gas Regulator, Acetylene, Single Stage, 0.825"-14 Inlet, 9/16"-18 Outlet, 15 psi

  • Mfr # 30-15-300

  • Zoro # G1874065

product price:  $165.99
/ea
Free Shipping & Returns

Key Features

Compatible Gas Type
Acetylene
Stages
Single Stage
Outlet Connection Size
9/16"-18
Body Material
Brass
Regulator Application
General Purpose
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
30-15-300
Zoro #
G1874065
UPC #
014495263383
Country of Origin
United States

Dimensions

Outlet Connection Size
9/16"-18
Gauge Diameter
2 in
Inlet Connection Size
0.825"-14
Overall Length
4-3/4"
Hose Fitting Size
B
Body Diameter
2 in
Dedupe with CGA Number and Inlet Connection Size
CGA 300

Details

Item
Gas Regulator
Compatible Gas Type
Acetylene
Stages
Single Stage
Body Material
Brass
Regulator Application
General Purpose
Number of Stages
Single Stage
Outlet Pressure (Maximum)
15 psig
Outlet Pressure (Minimum)
0 psig
Regulator Supply Type
Cylinder
Application
Aerospace, Boat/Yacht, Construction, Heavy Equipment Manufacturing, High Purity Processing, Infrastructure, Manufacturing, Railcar, Shipbuilding
Diaphragm Material
Neoprene
Includes
Bright Nickel-Plated Bonnet, Sure Seat(TM) Filtered Seat
Supply Pressure Gauge
400 psi
Gauges Delivery Pressure
30 psi
Delivery Pressure Range
15 psi
Regulator Capacity
Medium Duty
Delivery
15 psi
Standards
UL Listed
Type
Single Stage
Duty Rating
Medium/Standard Duty
Features
Corrosion-Resistant Bright Nickel-Plated Bonnet, Extremely Durable, Filtered Seats Prevent Contamination from Entering the Seating Area, Reducing Repair Costs and Downtime, Rugged Forged Body
Regulator Series
30
Control Type
T-Handle
Outlet Connection Gender
Male
Inlet Connection Gender
Male
Inlet Thread Direction
Right Hand
Outlet Connection Type
UNF
Inlet Pressure (Maximum)
400 psig
CGA Number
CGA 300
Inlet Connection Type
NGO
Maximum Gauge Outlet Pressure
400 psig
Outlet Thread Direction
Left Hand

Description

Gas Regulator, Maximum Gauge Outlet Pressure 400 psig, Number of Stages Single Stage, Compatible Gas Type Acetylene, Control Type T-Handle, Inlet Connection Type NGO, Inlet Connection Gender Male, Inlet Connection Size 0.825 In.-14, Outlet Pressure (Maximum) 15 psig, Outlet Connection Gender Male, Outlet Connection Size 9/16 In.-18, Outlet Connection Type UNF, Body Material Brass, Diaphragm Material Neoprene, CGA Number CGA 300, Hose Fitting Size B
