  5. Gas Regulator, Acetylene, Single Stage, 0.825"-14 Inlet, 9/16"-18 Outlet, 15 psi

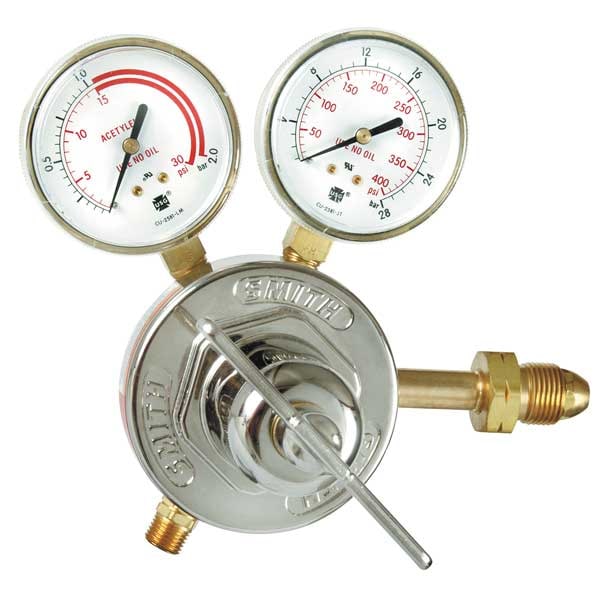

Smith Equipment Gas Regulator, Acetylene, Single Stage, 0.825"-14 Inlet, 9/16"-18 Outlet, 15 psi 40-15-510 - main

Gas Regulator, Acetylene, Single Stage, 0.825"-14 Inlet, 9/16"-18 Outlet, 15 psi

  • Mfr # 40-15-510

  • Zoro # G0966271

product price:  $326.99
/ea
Free Shipping & Returns

Key Features

Compatible Gas Type
Acetylene
Outlet Connection Size
9/16"-18
Body Material
Brass
Number of Stages
Single Stage
Outlet Pressure (Maximum)
15 psig
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
40-15-510
Zoro #
G0966271
UPC #
014495260771
Country of Origin
United States

Dimensions

Outlet Connection Size
9/16"-18
Gauge Diameter
2 1/2 in
Inlet Connection Size
0.825"-14
Overall Length
6"
Body Diameter
3.25 in
Hose Fitting Size
B
Dedupe with CGA Number and Inlet Connection Size
CGA 510

Details

Item
Gas Regulator
Compatible Gas Type
Acetylene
Body Material
Brass
Number of Stages
Single Stage
Outlet Pressure (Maximum)
15 psig
Outlet Pressure (Minimum)
0 psig
Regulator Supply Type
Cylinder
Supply Pressure Gauge
400 psi
Diaphragm Material
Stainless Steel
Standards
UL Listed
Regulator Capacity
Heavy Duty
Gauges Delivery Pressure
30 psi
Delivery
15 psi
Application
Aerospace, Boat/Yacht, Construction, DIY/Home Hobbyist, Farm and Ranch, Heavy Equipment Manufacturing, High Purity Processing, Infrastructure, Manufacturing, Metal Art/Sculptures, Racing/Customizing/Restoring, Railcar, Shipbuilding
Includes
External Relief Valve, Nickel-Plated Bonnet
Regulator Application
General Purpose
Delivery Pressure Range
15 psi
Stages
Single Stage
Type
Single Stage
Duty Rating
Heavy Duty
Features
2.5 Inch Corrosion Resistant Polished Brass Gauges with Shatter Resistant Polycarbonate Lenses, Color-Coded Labels, External Relief Valve, Nickel-Plated Bonnet, Resin Bonnet Insert, Stainless Steel Diaphragm, Sure Seat (TM) Dual Filtered Seat Assembly
Outlet Connection Gender
Male
Inlet Pressure (Maximum)
400 psig
Inlet Connection Gender
Female
Control Type
T-Handle
Outlet Connection Type
UNF
CGA Number
CGA 510
Maximum Gauge Outlet Pressure
400 psig
Outlet Thread Direction
Left Hand
Inlet Connection Type
NGO
Regulator Series
40
Inlet Thread Direction
Left Hand

Description

Gas Regulator, Maximum Gauge Outlet Pressure 400 psig, Number of Stages Single Stage, Compatible Gas Type Acetylene, Control Type T-Handle, Inlet Connection Type NGO, Inlet Connection Gender Female, Inlet Connection Size 0.825 In.-14, Outlet Pressure (Maximum) 15 psig, Outlet Connection Gender Male, Outlet Connection Size 9/16 In.-18, Outlet Connection Type UNF, Body Material Brass, Diaphragm Material Stainless Steel, CGA Number CGA 510, Hose Fitting Size B
