  9. Gas Regulator, Hydrogen, Methane, Single Stage, 0.825"-14 Inlet, 9/16"-18 Outlet, 100 psi
Smith Equipment Gas Regulator, Hydrogen, Methane, Single Stage, 0.825"-14 Inlet, 9/16"-18 Outlet, 100 psi 30-100-350 - main

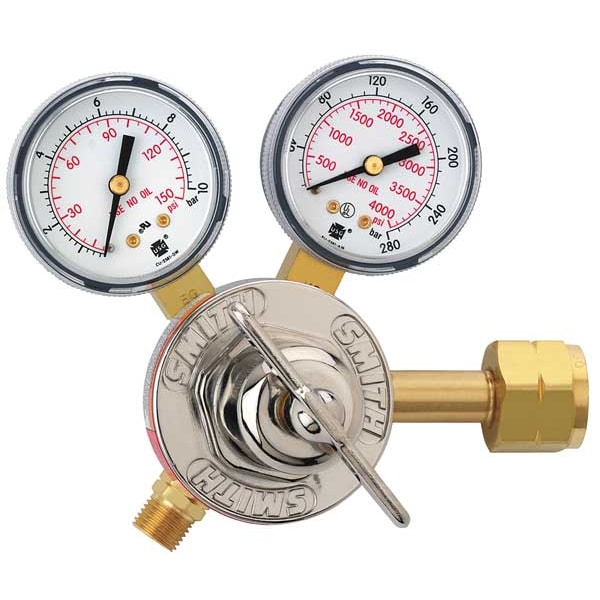

Gas Regulator, Hydrogen, Methane, Single Stage, 0.825"-14 Inlet, 9/16"-18 Outlet, 100 psi

  • Mfr # 30-100-350

  • Zoro # G0975012

product price: $170.99
/ea
Free Shipping & Returns

Key Features

Compatible Gas Type
Hydrogen, Methane
Outlet Connection Size
9/16"-18
Body Material
Brass
Number of Stages
Single Stage
Outlet Pressure (Maximum)
100 psig
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
30-100-350
Zoro #
G0975012
UPC #
014495263420
Country of Origin
United States

Dimensions

Outlet Connection Size
9/16"-18
Gauge Diameter
2 in
Inlet Connection Size
0.825"-14
Overall Length
4-3/4"
Hose Fitting Size
B
Body Diameter
2 in
Dedupe with CGA Number and Inlet Connection Size
CGA 350

Details

Item
Gas Regulator
Compatible Gas Type
Hydrogen, Methane
Body Material
Brass
Number of Stages
Single Stage
Outlet Pressure (Maximum)
100 psig
Outlet Pressure (Minimum)
0 psig
Regulator Supply Type
Cylinder
Includes
Bright Nickel-Plated Bonnet, Sure Seat(TM) Filtered Seat
Diaphragm Material
Neoprene
Gauges Delivery Pressure
150 psi
Regulator Application
General Purpose
Stages
Single Stage
Supply Pressure Gauge
4,000 psi
Regulator Capacity
Medium Duty
Delivery
100 psi
Delivery Pressure Range
100 psi
Application
Cutting, Heating, Welding
Standards
UL Listed
Features
Corrosion-Resistant Bright Nickel-Plated Bonnet, Extremely Durable, Filtered Seats Prevent Contamination from Entering the Seating Area, Reducing Repair Costs and Downtime, Rugged Forged Body
Type
Single Stage
Duty Rating
Medium/Standard Duty
Inlet Connection Gender
Male
CGA Number
CGA 350
Inlet Connection Type
NGO
Outlet Connection Gender
Male
Maximum Gauge Outlet Pressure
4,000 psig
Outlet Connection Type
UNF
Outlet Thread Direction
Left Hand
Inlet Pressure (Maximum)
3,000 psig
Control Type
T-Handle
Inlet Thread Direction
Left Hand
Regulator Series
30

Description

Gas Regulator, Maximum Gauge Outlet Pressure 4,000 psig, Number of Stages Single Stage, Compatible Gas Type Hydrogen, Methane, Control Type T-Handle, Inlet Connection Type NGO, Inlet Connection Gender Male, Inlet Connection Size 0.825 In.-14, Outlet Pressure (Maximum) 100 psig, Outlet Connection Gender Male, Outlet Connection Size 9/16 In.-18, Outlet Connection Type UNF, Body Material Brass, Diaphragm Material Neoprene, CGA Number CGA 350, Hose Fitting Size B
