  5. Gas Regulator, Nitrogen, Single Stage, 0.965"-14 Inlet, 5/8"-18 Outlet, 275 psi

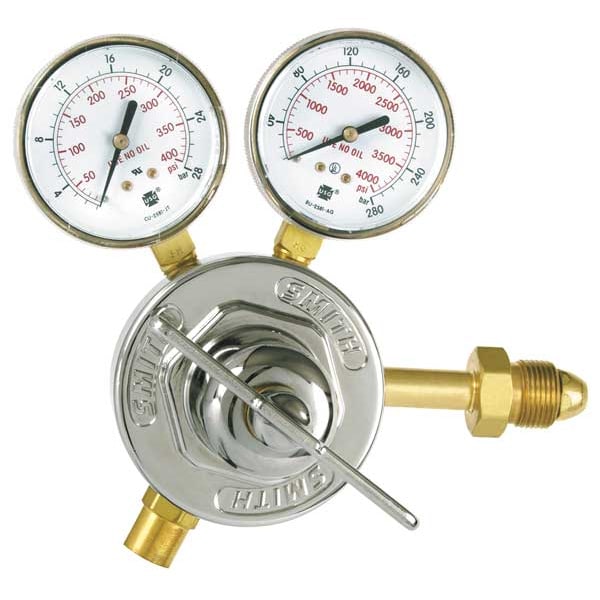

Smith Equipment Gas Regulator, Nitrogen, Single Stage, 0.965"-14 Inlet, 5/8"-18 Outlet, 275 psi 40-275-580 - main
Shop SMITH EQUIPMENT

Gas Regulator, Nitrogen, Single Stage, 0.965"-14 Inlet, 5/8"-18 Outlet, 275 psi

  • Mfr # 40-275-580

  • Zoro # G1392526

product price:  $332.99
/ea
Free Shipping & Returns

Key Features

Compatible Gas Type
Nitrogen
Outlet Connection Size
5/8"-18
Body Material
Brass
Number of Stages
Single Stage
Outlet Pressure (Maximum)
275 psig
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
40-275-580
Zoro #
G1392526
UPC #
014495260801
Country of Origin
United States

Dimensions

Outlet Connection Size
5/8"-18
Gauge Diameter
2 1/2 in
Inlet Connection Size
0.965"-14
Overall Length
6"
Body Diameter
3.25 in
Dedupe with CGA Number and Inlet Connection Size
CGA 580

Details

Item
Gas Regulator
Compatible Gas Type
Nitrogen
Body Material
Brass
Number of Stages
Single Stage
Outlet Pressure (Maximum)
275 psig
Outlet Pressure (Minimum)
0 psig
Regulator Supply Type
Cylinder
Includes
External Relief Valve, Nickel-Plated Bonnet
Application
Cutting, Heating, Welding
Delivery Pressure Range
275 psi
Stages
Single Stage
Regulator Application
General Purpose
Standards
UL Listed
Delivery
275 psi
Diaphragm Material
Stainless Steel
Gauges Delivery Pressure
400 psi
Supply Pressure Gauge
4,000 psi
Regulator Capacity
Heavy Duty
Duty Rating
Heavy Duty
Type
Single Stage
Features
2.5 Inch Corrosion Resistant Polished Brass Gauges with Shatter Resistant Polycarbonate Lenses, Color-Coded Labels, External Relief Valve, Nickel-Plated Bonnet, Resin Bonnet Insert, Stainless Steel Diaphragm, Sure Seat (TM) Dual Filtered Seat Assembly
Inlet Pressure (Maximum)
3,000 psig
Inlet Connection Type
NGO
Outlet Connection Type
UNF
Inlet Connection Gender
Male
Control Type
T-Handle
Maximum Gauge Outlet Pressure
4,000 psig
Inlet Thread Direction
Right Hand
Outlet Connection Gender
Female
Outlet Thread Direction
Right Hand
Regulator Series
40
CGA Number
CGA 580

Description

Gas Regulator, Maximum Gauge Outlet Pressure 4,000 psig, Number of Stages Single Stage, Compatible Gas Type Nitrogen, Control Type T-Handle, Inlet Connection Type NGO, Inlet Connection Gender Male, Inlet Connection Size 0.965 In.-14, Outlet Pressure (Maximum) 275 psig, Outlet Connection Gender Female, Outlet Connection Size 5/8 In.-18, Outlet Connection Type UNF, Body Material Brass, Diaphragm Material Stainless Steel, CGA Number CGA 580, Application Cutting, Heating, Welding
