  9. Gas Regulator, Nitrogen, Single Stage, 0.965"-14 Inlet, 7/16"-20 Outlet, 450 psi

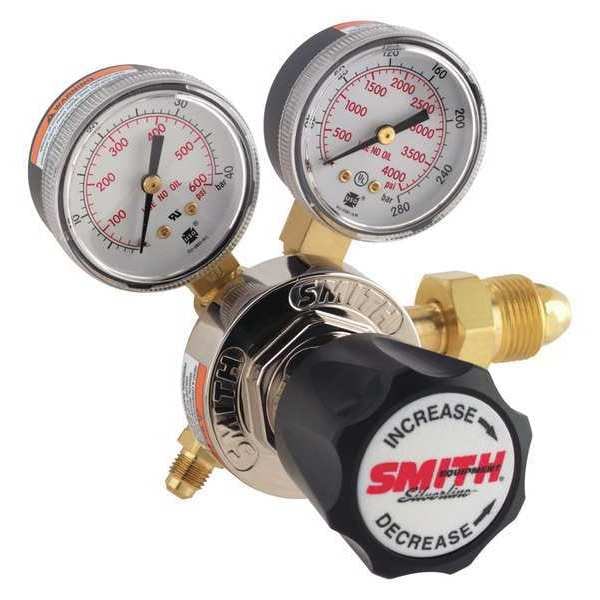

Smith Equipment Gas Regulator, Nitrogen, Single Stage, 0.965"-14 Inlet, 7/16"-20 Outlet, 450 psi 30-450-580 - main

Gas Regulator, Nitrogen, Single Stage, 0.965"-14 Inlet, 7/16"-20 Outlet, 450 psi

  • Mfr # 30-450-580

  • Zoro # G1620656

product price: $172.99
/ea
Free Shipping & Returns

Key Features

Compatible Gas Type
Nitrogen
Outlet Connection Size
7/16"-20
Body Material
Brass
Number of Stages
Single Stage
Outlet Pressure (Maximum)
450 psig
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
30-450-580
Zoro #
G1620656
UPC #
014495263376
Country of Origin
United States

Dimensions

Outlet Connection Size
7/16"-20
Gauge Diameter
2 in
Inlet Connection Size
0.965"-14
Overall Length
4-3/4"
Body Diameter
2 in
Dedupe with CGA Number and Inlet Connection Size
CGA 580

Details

Item
Gas Regulator
Compatible Gas Type
Nitrogen
Body Material
Brass
Number of Stages
Single Stage
Outlet Pressure (Maximum)
450 psig
Outlet Pressure (Minimum)
0 psig
Regulator Supply Type
Cylinder
Stages
Single Stage
Includes
Nylon Knob
Delivery Pressure Range
450 psi
Application
HVAC
Delivery
450 psi
Standards
UL Listed
Regulator Application
HVAC
Gauges Delivery Pressure
600 psi
Supply Pressure Gauge
4,000 psi
Diaphragm Material
Neoprene
Regulator Capacity
Medium Duty
Features
Color-Coded Labels, External Relief Valve, Nickel-Plated Bonnet, Shatter-Resistant Gauge Lenses, Sure-Seat (TM) Filtered High-Pressure Seat Assembly
Type
Single Stage
Duty Rating
Medium/Standard Duty
Inlet Connection Gender
Male
Maximum Gauge Outlet Pressure
4,000 psig
Outlet Connection Gender
Female
Inlet Connection Type
NGO
CGA Number
CGA 580
Inlet Pressure (Maximum)
3,000 psig
Outlet Connection Type
Flared
Control Type
Knob
Inlet Thread Direction
Right Hand
Regulator Series
30

Description

Gas Regulator, Maximum Gauge Outlet Pressure 4,000 psig, Number of Stages Single Stage, Compatible Gas Type Nitrogen, Control Type Knob, Inlet Connection Type NGO, Inlet Connection Gender Male, Inlet Connection Size 0.965 In.-14, Outlet Pressure (Maximum) 450 psig, Outlet Connection Gender Female, Outlet Connection Size 7/16 In.-20, Outlet Connection Type Flared, Body Material Brass, Diaphragm Material Neoprene, CGA Number CGA 580, Application HVAC, Body Diameter 2 in
