  9. High Purity Gas Regulator, Hydrogen, Methane, Single Stage, 0.825"-14 Inlet, 1/8 in Outlet

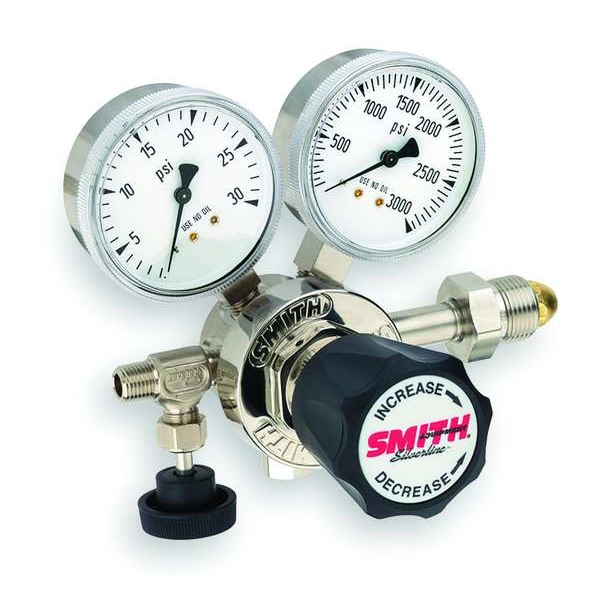

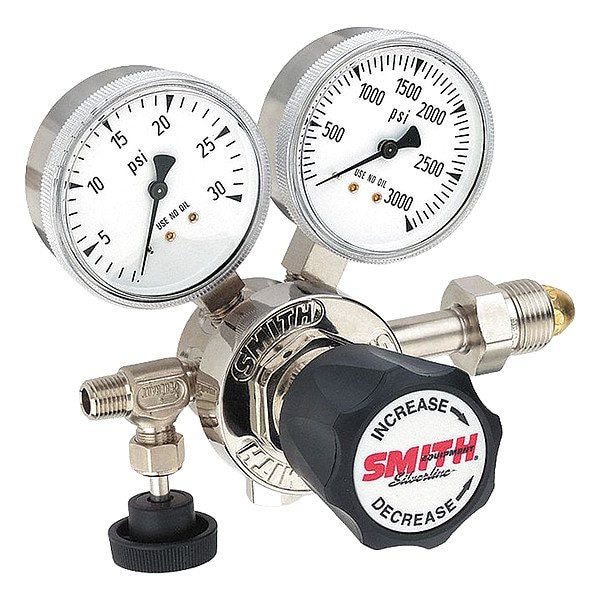

Smith Equipment High Purity Gas Regulator, Hydrogen, Methane, Single Stage, 0.825"-14 Inlet, 1/8 in Outlet 210-4106 - main

High Purity Gas Regulator, Hydrogen, Methane, Single Stage, 0.825"-14 Inlet, 1/8 in Outlet

  • Mfr # 210-4106

  • Zoro # G0254475

product price: $444.99
/ea
Free Shipping & Returns

Key Features

Compatible Gas Type
Hydrogen, Methane
Outlet Connection Size
1/8 in
Body Material
Nickel Plated Brass
Number of Stages
Single Stage
Outlet Pressure (Maximum)
15 psig
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
210-4106
Zoro #
G0254475
UPC #
014495271111
Country of Origin
United States

Dimensions

Outlet Connection Size
1/8 in
Gauge Diameter
2 1/2 in
Inlet Connection Size
0.825"-14
Overall Length
4-3/4"
Body Diameter
2 in
Dedupe with CGA Number and Inlet Connection Size
CGA 350

Details

Item
High Purity Gas Regulator
Compatible Gas Type
Hydrogen, Methane
Body Material
Nickel Plated Brass
Number of Stages
Single Stage
Outlet Pressure (Maximum)
15 psig
Outlet Pressure (Minimum)
0 psig
Regulator Supply Type
Cylinder
Application
Automotive Emissions Testing, Biological Laboratories, Chemical Process Plants, Instrument Analysis
Diaphragm Material
Stainless Steel
Regulator Capacity
Heavy Duty
Supply Pressure Gauge
4,000 psi
Stages
Single Stage
Delivery Pressure Range
0 to 15 psi
Regulator Application
Laboratory
Includes
Bonnet, Gauges, Plated Body, Sure Seat(TM) Filtered Seat
Gauges Delivery Pressure
30" Hg 0 to 30 psig
Delivery
0 to 15 psi
Features
Built In Safety Relief Valve, Stainless Steel Diaphragm
Type
Single Stage, High Purity, Analytical, High Pressure
CGA Number
CGA 350
Seat Material
PFA
Regulator Series
210
Inlet Pressure (Maximum)
3,500 psig
Seal Material
FKM
Helium Leak Integrity Rating
1.00 x 10^-5 cc/sec
Inlet Thread Direction
Left Hand
Filter Material
316 Stainless Steel
Inlet Connection Type
NGO
Body Finish
Nickel Plated
Outlet Connection Type
Tube
Inlet Connection Gender
Male
Control Type
Knob
Flow Coefficient
0.09
Gas Purity Rating
99.99 %
Operating Temperature (Maximum)
165 Degrees F
Operating Temperature (Minimum)
-40 Degrees F
Bonnet Material
Nickel Plated Brass

Description

High Purity Gas Regulator, Mounting Type Cylinder, Number of Stages Single Stage, Compatible Gas Type Hydrogen, Methane, Control Type Knob, Maximum Inlet Pressure 3,500 psig, Inlet Connection Size 0.825 In.-14, Inlet Connection Gender Male, Inlet Connection Type NGO, Inlet Thread Direction Left Hand, Outlet Pressure (Maximum) 15 psig, Outlet Connection Size 1/8 in, Outlet Connection Type Tube, Gas Purity Rating 99.99 Percent, Helium Leak Integrity Rating 1.00 x 10^-5 cc/sec
