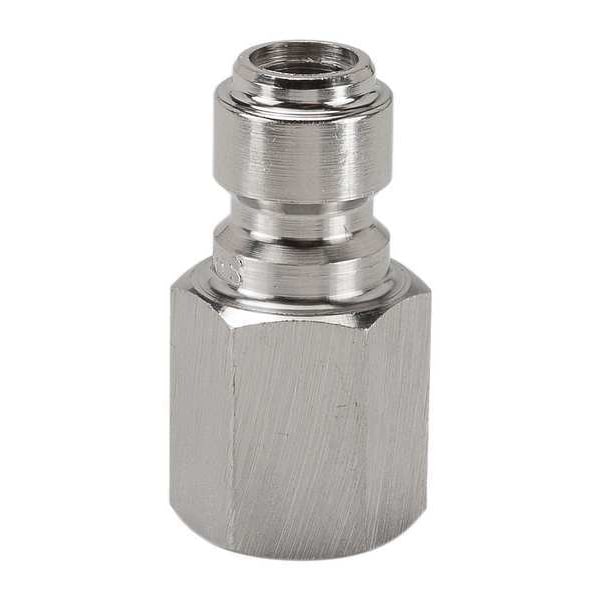

Hydraulic Quick Connect Hose Coupling, 316 Stainless Steel Body, Ball Lock, 1/4"-18 Thread Size

Mfr # SPEAN4-4F
Zoro # G6197861

28.49

Key Features

Body Material

Stainless Steel

Seal Material

Buna-N

Coupling Locking Type

Ball

Max. Pressure

3000 psi

Thread Size

1/4"-18

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: SPEAN4-4F
Zoro #: G6197861
UPC #: -
Country of Origin: United States

Dimensions

Thread Size: 1/4"-18
Coupler Thread Size: 1/4"-18
Coupler Body Size: 1/4"
Overall Length: 1 5/16 in
Max. Outside Dia.: 3/4 in
Coupling Size: 1/4 in
Wire Rope Length: 1 5/16 in

Details

Item: Hydraulic Quick Connect Hose Coupling
Body Material: Stainless Steel
Seal Material: Buna-N
Coupling Locking Type: Ball
Max. Pressure: 3000 psi
Connection Type: Threaded
Shut Off: No
Sleeve Material: 316 Stainless Steel
Series: EA
Coupler Flow Rate: 14.0 gpm
Valve Design: Poppet
Seal Type: Buna N
Locking Mechanism: Ball
Coupler Interchange Type: EA
Operating Temp. Range: -40 Degrees to 200 Degrees F
Quick Coupler Type: Hydraulic Coupler Nipple
Coupler Connection Type: FNPT
Coupler Finish: Plain
Coupler Body Material: 316 Stainless Steel
Max. Working Pressure @ 70 F: 3,000 psi
Hose Fitting Gender: Female
Includes Shut Off: Yes
Max. Flow Rate: 53 lpm
Includes Bearing: No
Fitting Type: Female NPSF
Finish/Coating: Plain
Includes Valve: No
Coupling Component: Plug

Description

Hydraulic Quick Connect Hose Coupling, Plug, EA Series, Stainless Steel, Coupling Size 1/4 in, Female, Max. Working Pressure @ 70 F 3,000 psi, Max. Flow Rate 53 lpm
