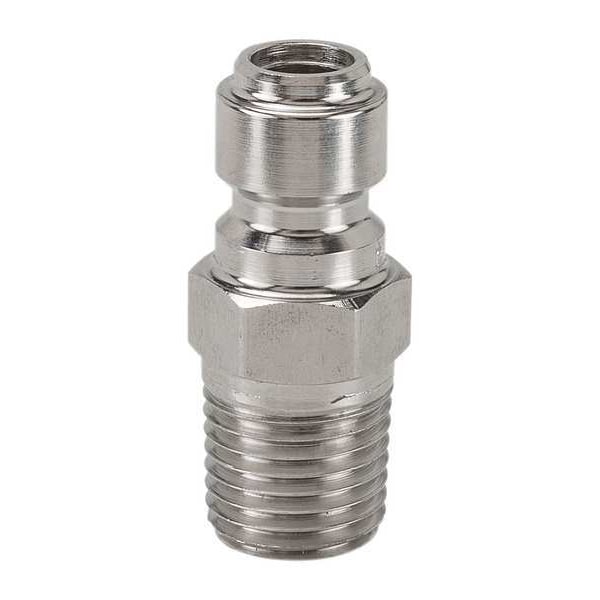

Hydraulic Quick Connect Hose Coupling, 316 Stainless Steel Body, Ball Lock, 1/4"-18 Thread Size

Mfr # SPEAN4-4M
Zoro # G6200747

29.99

Key Features

Body Material

Stainless Steel

Seal Material

Buna-N

Coupling Locking Type

Ball

Max. Pressure

3000 psi

Thread Size

1/4"-18

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: SPEAN4-4M
Zoro #: G6200747
UPC #: -
Country of Origin: United States

Dimensions

Thread Size: 1/4"-18
Coupler Body Size: 1/4"
Coupler Thread Size: 1/4"-18
Overall Length: 1 7/16 in
Coupling Size: 1/4 in
Max. Outside Dia.: 11/16 in
Wire Rope Length: 1 7/16 in

Details

Item: Hydraulic Quick Connect Hose Coupling
Body Material: Stainless Steel
Seal Material: Buna-N
Coupling Locking Type: Ball
Max. Pressure: 3000 psi
Connection Type: Threaded
Shut Off: No
Sleeve Material: 316 Stainless Steel
Series: EA
Operating Temp. Range: -40 Degrees to 200 Degrees F
Quick Coupler Type: Hydraulic Coupler Nipple
Valve Design: Poppet
Seal Type: Buna N
Coupler Finish: Plain
Coupler Connection Type: MNPT
Coupler Body Material: 316 Stainless Steel
Locking Mechanism: Ball
Coupler Flow Rate: 13.0 gpm
Coupler Interchange Type: EA
Includes Shut Off: Yes
Includes Valve: No
Coupling Component: Plug
Finish/Coating: Plain
Includes Bearing: No
Fitting Type: Male NPSF
Hose Fitting Gender: Male
Max. Flow Rate: 49.21 lpm
Max. Working Pressure @ 70 F: 3,000 psi

Description

Hydraulic Quick Connect Hose Coupling, Plug, EA Series, 316 Stainless Steel, Coupling Size 1/4 in, Male, Max. Working Pressure @ 70 F 3,000 psi, Max. Flow Rate 49.21 lpm
