Snap-Tite

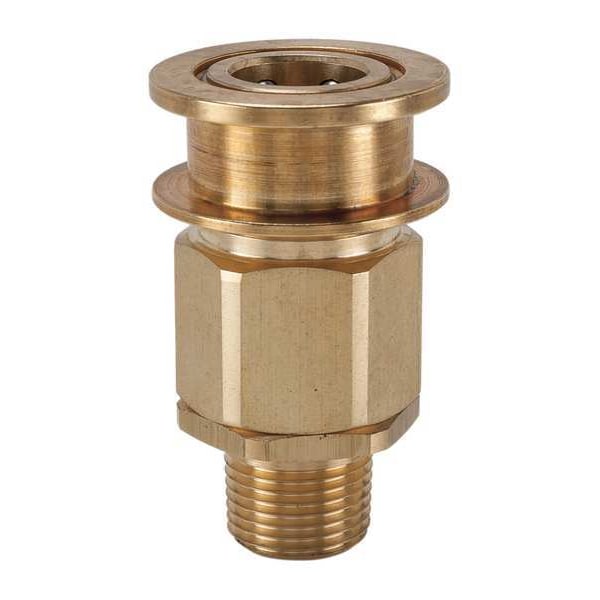

Hydraulic Quick Connect Hose Coupling, Brass Body, Sleeve Lock, 3/8"-18 Thread Size, EA Series

product price: $83.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Quick Coupler Type Hydraulic Coupler Body
  • Coupler Interchange Type EA
  • Connection Type NPTF
  • Coupler Thread Size 3/8"-18
  • Coupler Body Size 3/8"
See all product information

Product Information

Dimensions

Coupler Thread Size 3/8"-18
Coupler Body Size 3/8"
Thread Size 3/8"-18
Overall Length 2 5/32 in
Max. Outside Dia. 1 5/16 in
Coupling Size 3/8 in

Details

Item Hydraulic Quick Connect Hose Coupling
Quick Coupler Type Hydraulic Coupler Body
Coupler Interchange Type EA
Connection Type NPTF
Coupler Flow Rate 27.0 gpm
Max. Pressure 1500 psi
Coupler Body Material Brass
Sleeve Material Brass
Coupler Finish Plain
Series EA
Body Material Brass
Coupling Locking Type Sleeve
Valve Design Poppet
Coupler Connection Type MNPT
Locking Mechanism Ball
Shut Off Yes
Seal Type Buna N
Operating Temp. Range -40 Degrees to 200 Degrees F
Bearing Material 440 Stainless Steel
Seal Material Nitrile
Fitting Type Male NPTF
Includes Shut Off Yes
Max. Working Pressure @ 70 F 1,500 psi
Coupling Component Socket
Finish/Coating Plain
Max. Flow Rate 102.2 lpm
Hose Fitting Gender Male
Includes Bearing Yes
Includes Valve Yes
Valve Type Poppet

Description

Hydraulic Quick Connect Hose Coupling, Socket, EA Series, Brass, Coupling Size 3/8 in, Male, Max. Working Pressure @ 70 F 1,500 psi, Max. Flow Rate 102.2 lpm
