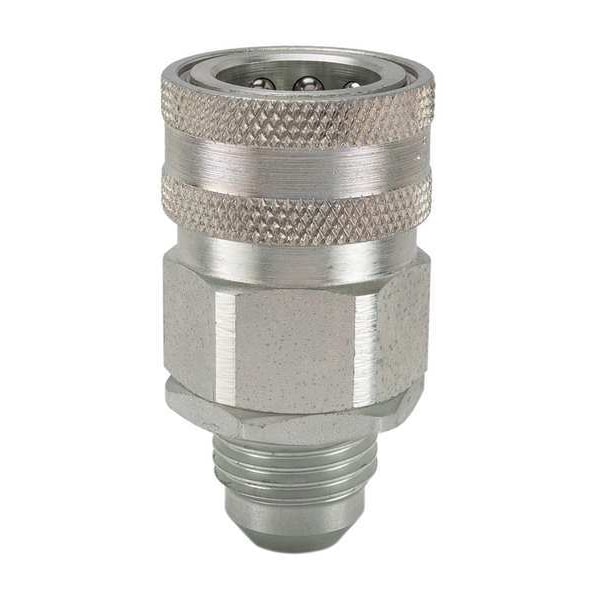

Hydraulic Quick Connect Hose Coupling, Steel Body, Sleeve Lock, 3/4"-16 Thread Size, H Series

Mfr # VHC8-8EM
Zoro # G6169186

44.29

Key Features

Body Material

Steel

Seal Material

Buna-N

Coupling Locking Type

Sleeve

Max. Pressure

4000 psi

Thread Size

3/4"-16

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: VHC8-8EM
Zoro #: G6169186
UPC #: -
Country of Origin: United States

Dimensions

Thread Size: 3/4"-16
Length: 2 1/2 in
Coupler Body Size: 1/2"
Coupler Thread Size: 3/4"-16
Overall Length: 2 1/2 in
Max. Outside Dia.: 1 1/16 in
Coupling Size: 1/2 in
Wire Rope Length: 2 1/2 in

Details

Item: Hydraulic Quick Connect Hose Coupling
Body Material: Steel
Seal Material: Buna-N
Coupling Locking Type: Sleeve
Max. Pressure: 4000 psi
Connection Type: Threaded
Shut Off: Yes
Sleeve Material: Steel
Includes: Sleeve Lock
Series: H
Coupler Flow Rate: 14.0 gpm
Operating Temp. Range: -40 Degrees to 200 Degrees F
Quick Coupler Type: Hydraulic Coupler Body
Coupler Body Material: Steel
Valve Design: Poppet
Coupler Finish: Zinc Plated
Coupler Connection Type: UNF
Coupler Interchange Type: H
Bearing Material: 440 Stainless Steel
Locking Mechanism: Ball
Parker Interchange: VHC8-8EM
Finish/Coating: Zinc Plated
Fitting Type: Male UNF
Max. Flow Rate: 52.99 lpm
Coupling Component: Socket
Includes Bearing: Yes
Includes Shut Off: Yes
Includes Valve: Yes
Hose Fitting Gender: Male
Max. Working Pressure @ 70 F: 4,000 psi
Valve Type: Poppet

Description

Hydraulic Quick Connect Hose Coupling, Socket, H Series, Steel, Coupling Size 1/2 in, Male, Max. Working Pressure @ 70 F 4,000 psi, Max. Flow Rate 52.99 lpm
