Shop SOLA

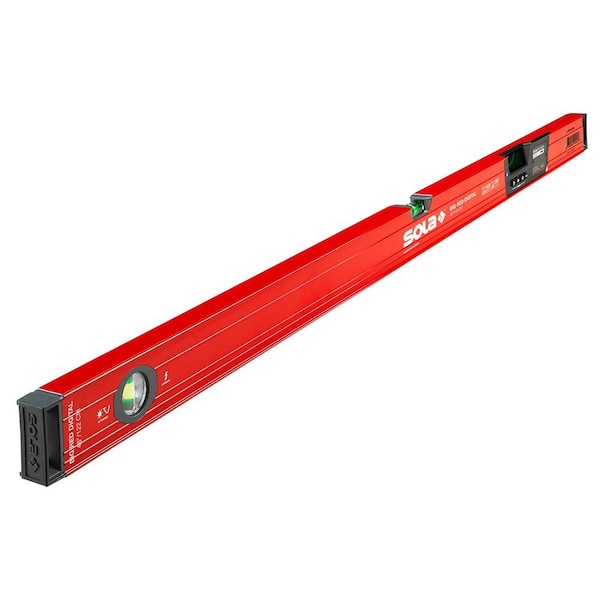

Electronic Digital Level, 48 in L

  • Mfr # LSB48DG
  • Zoro # G402676428
product price:
$
329.99
/ea
Free Shipping & Returns

Key Features

Type
Box Beam
Visual/Audible Indicators
Yes
Preset Angle (Deg.)
0 Degrees
Length (In.)
48 in
Accuracy
Inverted Position Less Than or Equal To 0.0005 in./in. (0.5 mm/m, 0.029 Degrees ), Solatronic Module 0.05 Degrees at 0 Degrees and 90 Degrees , 0.1 in. between 1 Degrees and 89 Degrees ., Standard Position Less Than or Equal To 0.0003 in./in. (0.3 mm/m, 0.017 Degrees )
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LSB48DG
Zoro #
G402676428
UPC #
885829001953
Country of Origin
Austria

Dimensions

Length (In.)
48 in
Dimensions (In.)
48 in L x 1 in W x 2.5 in H
Overall Length
48 in
Overall Height
2 1/2 in
Overall Width
1 in
Battery Size
AAA
Wire Rope Length
48 in
Length
48 in
Fits Chest Size
Bluetooth Interface for the Sola Measures App, Convenient Reading Thanks to Reversible Display for Inverted Measurements, Hold Function for Storing Measured Values and for Transferring Angles

Details

Item
Electronic Digital Level
Type
Box Beam
Visual/Audible Indicators
Yes
Preset Angle (Deg.)
0 Degrees
Accuracy
Inverted Position Less Than or Equal To 0.0005 in./in. (0.5 mm/m, 0.029 Degrees ), Solatronic Module 0.05 Degrees at 0 Degrees and 90 Degrees , 0.1 in. between 1 Degrees and 89 Degrees ., Standard Position Less Than or Equal To 0.0003 in./in. (0.3 mm/m, 0.017 Degrees )
Includes
Case
Power Source
(3) AAA Batteries
Application
ADA Compliant Ramps, Carpentry, Drainage Slope, Metalworking, Roof Pitch, Window and Door Installation, Woodworking
Characteristics
Adjustable Inclination Display, Bluetooth Interface for Use With Sola Measures App, Digital Display Rotates Automatically in Inverted Positions, HOLD Function for Storing Measuring Results and Transferring Angles, IP65 Dustproof and Protected Against Water Jets, Patented FOCUS Vial Technology, Permanently Backlit Display, Sola Measures App Features Remote Control Functions, Document, Photograph and Share Real-Time Data - Suitable for IOS and Android
Operating Temp. (F)
14 Degrees to 122 Degrees
Includes Batteries
Batteries Included
Number of Level Vials
1
End Cap Type
Permanent End Caps
Resolution
0 Degrees
Number of 30 Vials
0
Standards
IP65
Total Number of Vials
2
Measuring Range - Maximum
180 Degrees
Level Indicators
Audible, Visual
Vial Material
Plastic
Magnetic
Nonmagnetic
Measuring Units
Decimal, Degrees, Feet, Fractional, Inches, Meters, Millimeters, Percent
Frame Material
Aluminum
Accuracy - Inverted
0.0005 in
Measuring Range - Minimum
0 Degrees
Vial Shape
Block
Accuracy - Standard
0.0003 in
Use Location
Indoor, Outdoor
Accuracy - 0 and 90
+/-0.05 Degrees
Number of Plumb Vials
1
Operating Temperature - Minimum
14 Degrees F
Operating Temperature - Maximum
122 Degrees F
Color
Black, Red
Preset Angles
0 Degrees
Number of 45 Vials
0
Number of Magnets
0
Features
Bluetooth Interface for the Sola Measures App, Convenient Reading Thanks to Reversible Display for Inverted Measurements, Hold Function for Storing Measured Values and for Transferring Angles
Vial Types Included
Level Vials
Vial Illumination
Luminous Strip
Number of Hand Grips
0
Number of V-Grooves
0
Accuracy - Other Angles
0.05 Degrees
Measurement Functions
Level, Plumb
Style
Digital, Bluetooth
Wire Color
Black, Red

Description

Electronic Digital Level, Measuring Range - Maximum 180 Degrees , Measuring Range - Minimum 0 Degrees , Magnet Type Not Applicable, Number of Magnets 0, Accuracy - Other Angles 0.05 Degrees , Overall Length 48 in, Battery Size AAA, Includes Batteries Batteries Included, Accuracy - 0 and 90 +/-0.05 Degrees , Frame Material Aluminum, Preset Angles 0 Degrees , Total Number of Vials 2, Accuracy - Inverted 0.0005 in, Accuracy - Standard 0.0003 in, Color Black, Red, End Cap Type Permanent End Caps
